NSN 5910-00-110-7672
Part Details | PAPER DIELECTRIC FIXED CAPACITOR
5910-00-110-7672 A capacitor whose capacitance value cannot be adjusted or varied, having paper as the dielectric material. It may be a single unit or consist of two or more fixed units which cannot be seperated. For items whose dielectric material consist of plasticized (plastic impregnated) paper or paper-plastic combinations, see CAPACITOR, FIXED, PLASTIC DIELECTRIC. For items whose electrodes consist of a metallic film deposited (metallized) on the dielectric material, see CAPACITOR, FIXED, METALIZED, PAPER-PLASTIC DIELECTRIC.
Alternate Parts: 53061, 5306-1, 1441191, 144119-1, 5910-00-110-7672, 00-110-7672, 5910001107672, 001107672
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | AUG 09, 1968 | 00-110-7672 | 00003 ( CAPACITOR, FIXED, PAPER DIELECTRIC ) |
REFERENCE DRAWINGS & PICTURES
W/THD MTG HOLE(S)/STUD(S) TERMINAL(S) ON ONE SURFACE
SERIES CONNECTED, END TERMINAL GROUNDED TO CASE
Cross Reference | NSN 5910-00-110-7672
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5306-1 | 12406 | ELPAC ELECTRONICS INC |
| 144119-1 | 70210 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
Technical Data | NSN 5910-00-110-7672
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 3.500 MICROFARADS ALL SECTIONS |
| TOLERANCE RANGE PER SECTION | -10.00 TO +0.00 PERCENT ALL SECTIONS |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 208.0 AC-RMS ALL SECTIONS |
| NONDERATED OPERATING TEMP | -65.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM |
| BODY STYLE | W/THD MTG HOLE(S)/STUD(S) TERMINAL(S) ON ONE SURFACE |
| BODY LENGTH | 4.450 INCHES MAXIMUM |
| BODY WIDTH | 2.500 INCHES MAXIMUM |
| BODY HEIGHT | 2.250 INCHES MAXIMUM |

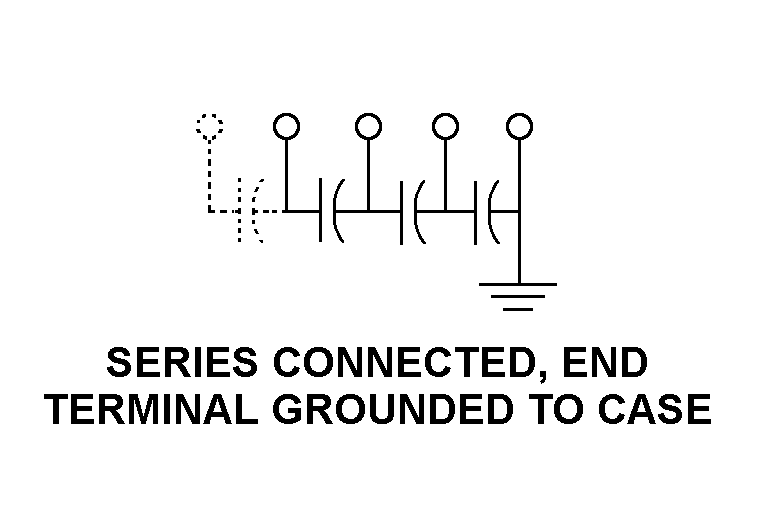

| SCHEMATIC DIAGRAM DESIGNATOR | SERIES CONNECTED, END TERMINAL GROUNDED TO CASE |
| TERMINAL TYPE AND QUANTITY | 4 TAB, SOLDER LUG |
| CASE MATERIAL | METAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED MOUNTING STUDS |
| MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.164 INCHES |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH | 3.656 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 1.719 INCHES NOMINAL |
| INSULATION RESISTANCE AT REFERENCE TEMP | 1000.0 MEGOHMS |
| POWER FACTOR AT REFERENCE TEMP IN PERCENT | 2.000 |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| TERMINAL SURFACE TREATMENT | SOLDER |
| INTERNAL ELECTRICAL CONNECTION TYPE | EXTENDED FOIL |
