NSN 5915-00-476-8059
Part Details | CAPACITOR-RESISTOR
5915-00-476-8059 An item consisting of one or more capacitors and one or more resistors molded together, housed together in a common case, or mounted on a common board. The individual capacitors and resistors are not separable and the overall item usually has various design applications; hence, cannot be considered a subassembly. Do not use if more applicable item names, such as FILTER (as modified), or NETWORK (as modified), exist.
Alternate Parts: 79022921, 7902292-1, SDN137, SDN-137, 5915-00-476-8059, 00-476-8059, 5915004768059, 004768059
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 10, 1971 | 00-476-8059 | 05090 ( CAPACITOR-RESISTOR ) |
REFERENCE DRAWINGS & PICTURES

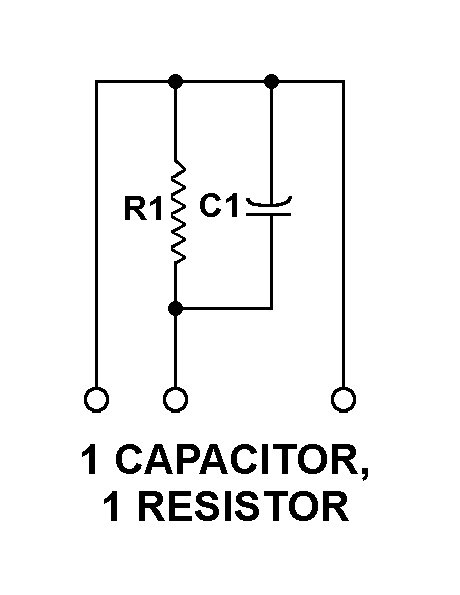

1 CAPACITOR, 1 RESISTOR
Cross Reference | NSN 5915-00-476-8059
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7902292-1 | 93322 | GE AVIATION SYSTEMS LLCDBA GE AVIATION |
| SDN-137 | 30039 | INTERNATIONAL COMPONENTS CORP |
Technical Data | NSN 5915-00-476-8059
| Characteristic | Specifications |
|---|---|
| SCHEMATIC DIAGRAM DESIGNATOR | 9 1 CAPACITOR, 1 RESISTOR |
| CAPACITANCE VALUE PER FUNCTION | 180000.0 PICOFARADS ALL CAPACITORS |
| CAPACITANCE TOLERANCE PER FUNCTION IN PERCENT | -1.0 TO +1.0 ALL CAPACITORS |
| DC VOLTAGE RATING PER FUNCTION IN VOLTS | 30.0 ALL CAPACITORS |
| ELECTRICAL RESISTANCE PER FUNCTION | 10.0 KILOHMS ALL RESISTORS |
| RESISTANCE TOLERANCE PER FUNCTION IN PERCENT | -1.0 TO +1.0 ALL RESISTORS |
| RESISTOR POWER DISSIPATION RATING PER FUNCTION IN WATTS | 0.250 ALL RESISTORS |
| ASSEMBLY FORM | ENCASED |
| TERMINAL TYPE AND QUANTITY | 8 WIRE LEAD |
| MOUNTING METHOD | TERMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.000 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 1.000 INCHES NOMINAL |
| OVERALL LENGTH | 1.250 INCHES NOMINAL |
| OVERALL WIDTH | 1.250 INCHES NOMINAL |
| OVERALL HEIGHT | 1.125 INCHES NOMINAL |
