NSN 5920-00-228-4418
Part Details | EXTRACTOR POST FUSEHOLDER
5920-00-228-4418 A fuseholder in which the clips or contacts for electrical connection to the fuse are mounted in a tubular body or similar inclosure which surrounds the fuse. It generally contains a removable cap or knob. It includes in-the-line type and those designated as miniature type FUSEHOLDER (as modified).
Alternate Parts: MILF192077, MIL-F-19207/7, FHL16G, 9000S620273290ALT1EL1, 9000S6202-73290ALT1/EL1, 5920-00-228-4418, 00-228-4418, 5920002284418, 002284418
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-228-4418 | 28909 ( FUSEHOLDER, EXTRACTOR POST ) |
REFERENCE DRAWINGS & PICTURES

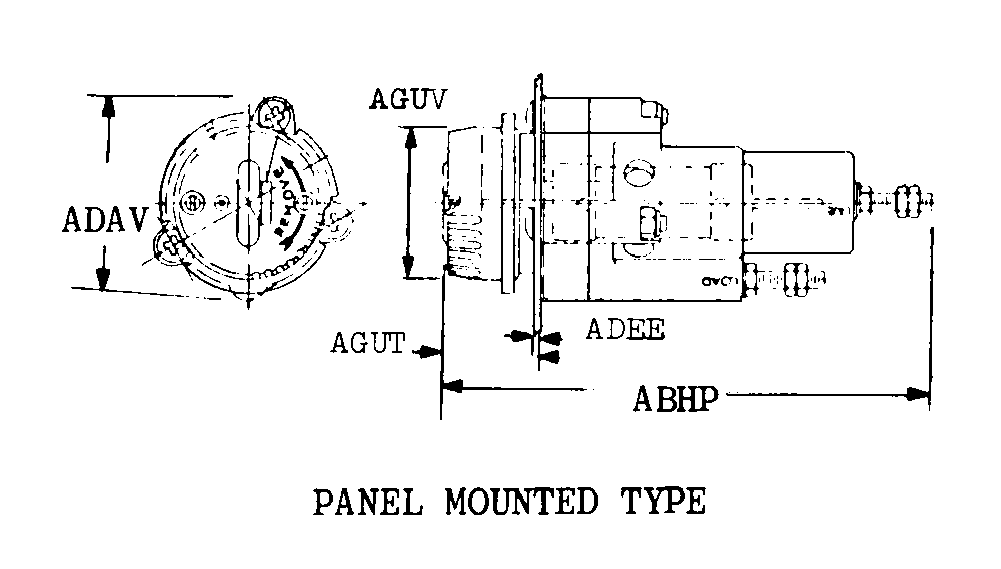

PANEL MOUNTED TYPE
ONE HOLE MOUNTING
Cross Reference | NSN 5920-00-228-4418
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MIL-F-19207/7 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| FHL16G | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| 9000S6202-73290ALT1/EL1 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Technical Data | NSN 5920-00-228-4418
| Characteristic | Specifications |
|---|---|
| FUSE ACCOMMODATION QUANTITY | 1 |
| CURRENT CARRYING RATING IN AMPS | 200.0 |
| VOLTAGE IN VOLTS | 500.0 |
| FUSE TERMINAL TYPE ACCOMMODATED | KNIFE BLADE |
| TERMINAL TYPE AND QUANTITY | 2 THREADED STUD |
| SCREW THREAD DIAMETER | 0.375 INCHES NOMINAL |
| SCREW THREAD QUANTITY PER INCH | 16.0 |
| CONTACT MATERIAL | COPPER |
| CONTACT SURFACE TREATMENT | NICKEL PLATED |
| BODY STYLE | PANEL MOUNTED TYPE |
| OVERALL LENGTH | 10.313 INCHES NOMINAL |
| OVERALL DIAMETER | 3.938 INCHES NOMINAL |
| PANEL THICKNESS | 0.250 INCHES MAXIMUM |
| LENGTH FROM FRONT PROTRUSION TO MOUNTING SURFACE | 2.125 INCHES NOMINAL |
| CAP DIAMETER | 3.188 INCHES NOMINAL |
| MOUNTING HOLE STYLE | 6 ONE HOLE MOUNTING |
| SHORTEST CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 1.250 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG LENGTH | 2.500 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG WIDTH | 3.126 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN INSIDE MOUNTING HOLES ALONG LENGTH | 1.250 INCHES NOMINAL |
| BUSHING HOLE DIAMETER | 2.938 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN BUSHING HOLE AND MOUNTING HOLE | 1.813 INCHES NOMINAL |
| MOUNTING HOLE QUANTITY | 3 |
| MOUNTING HOLE DIAMETER | 0.344 INCHES NOMINAL |
| ACCOMMODATED FUSE LENGTH | 7.125 INCHES NOMINAL |
| ACCOMMODATED FERRULE DIAMETER | 1.875 INCHES MINIMUM AND 1.880 INCHES MAXIMUM |
| INTERRUPTION INDICATOR METHOD | NEON LAMP |
| LENS COLOR | CLEAR |
| ENVIRONMENTAL PROTECTION | DRIPPROOF |
| TEST DATA DOCUMENT | 81349-MIL-F-19207 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.). |
| SPECIFICATION/STANDARD DATA | 81349-MIL-F-19207 TO 7 GOVERNMENT SPECIFICATION |
| TERMINAL MATERIAL | BRASS |
| BODY MATERIAL | PLASTIC, POLYESTER, MIL-M-14, TYPE MAI-60 |
| PRECIOUS MATERIAL | SILVER |
| PRECIOUS MATERIAL AND LOCATION | TERMINAL HEX NUT SURFACE SILVER |
