NSN 5920-00-228-4442
Part Details | RECEPTACLE FUSEHOLDER
5920-00-228-4442 A fuseholder which is specifically designed to accommodate one or more FUSE, PLUG. Excludes FUSEHOLDER, BLOCK.
Alternate Parts: WF870, 5920-00-228-4442, 00-228-4442, 5920002284442, 002284442
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-228-4442 | 28910 ( FUSEHOLDER, RECEPTACLE ) |
REFERENCE DRAWINGS & PICTURES

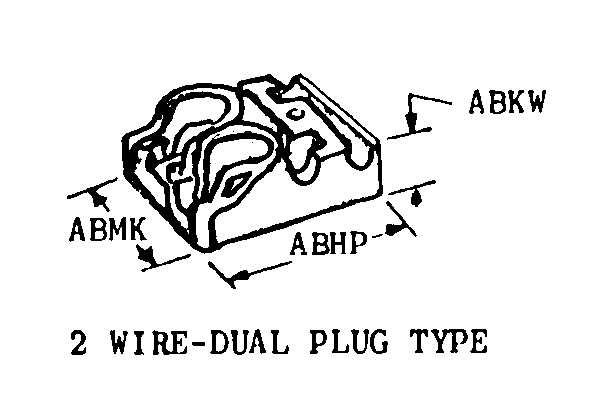

2 WIRE-DUAL PLUG TYPE
Cross Reference | NSN 5920-00-228-4442
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| WF870 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
Technical Data | NSN 5920-00-228-4442
| Characteristic | Specifications |
|---|---|
| FUSE ACCOMMODATION QUANTITY | 2 |
| CURRENT CARRYING RATING IN AMPS | 30.0 |
| VOLTAGE IN VOLTS | 125.0 |
| TERMINAL TYPE AND QUANTITY | 4 SCREW |
| CONTACT MATERIAL | BRASS |
| BODY STYLE | 2 WIRE-DUAL PLUG TYPE |
| OVERALL LENGTH | 3.594 INCHES NOMINAL |
| OVERALL HEIGHT | 1.500 INCHES NOMINAL |
| OVERALL WIDTH | 2.938 INCHES NOMINAL |
| MOUNTING HOLE QUANTITY | 2 |
| INTERNAL CIRCUIT CONFIGURATION AND POLE QUANTITY | 2 POLE, SINGLE BRANCH, FUSED |
| SPECIAL FEATURES | MOUNTING HOLES 0.20 IN. DIA.,SPACED 2.281 IN. C TO C |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE |
