NSN 5920-00-240-4088
Part Details | RECEPTACLE FUSEHOLDER
5920-00-240-4088 A fuseholder which is specifically designed to accommodate one or more FUSE, PLUG. Excludes FUSEHOLDER, BLOCK.
Alternate Parts: SRD1610, SRD1-6/10, 5920-00-240-4088, 00-240-4088, 5920002404088, 002404088
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-240-4088 | 28910 ( FUSEHOLDER, RECEPTACLE ) |
REFERENCE DRAWINGS & PICTURES
SINGLE PLUG TYPE

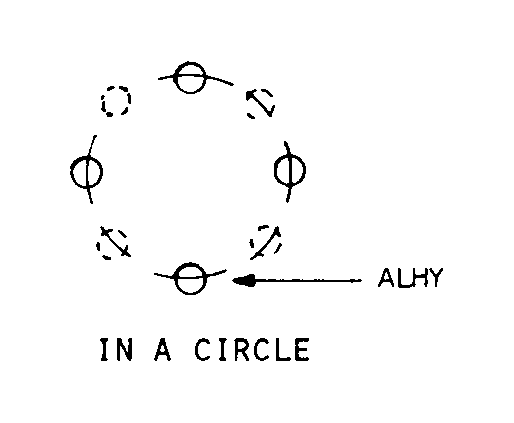

IN A CIRCLE
Cross Reference | NSN 5920-00-240-4088
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SRD1-6/10 | 71400 | COOPER BUSSMANN, LLCDBA COOPER BUSSMANN |
Technical Data | NSN 5920-00-240-4088
| Characteristic | Specifications |
|---|---|
| FUSE ACCOMMODATION QUANTITY | 1 |
| CURRENT CARRYING RATING IN AMPS | 30.0 |
| VOLTAGE IN VOLTS | 125.0 |
| FUSE TERMINAL TYPE ACCOMMODATED | SCREW BASE |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
| WIRE LEAD LENGTH | 8.000 INCHES NOMINAL |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | ANY ACCEPTABLE |
| BODY STYLE | SINGLE PLUG TYPE |
| OVERALL HEIGHT | 0.985 INCHES NOMINAL |
| OVERALL DIAMETER | 1.500 INCHES NOMINAL |
| MOUNTING HOLE STYLE | IN A CIRCLE |
| MOUNTING HOLE QUANTITY | 1 |
| INTERNAL CIRCUIT CONFIGURATION AND POLE QUANTITY | 1 POLE, SINGLE BRANCH, FUSED |
| TERMINAL MATERIAL | SOLDER DIP |
| BODY MATERIAL | CERAMIC |
