NSN 5920-00-607-3073
Part Details | FUSEHOLDER SUBASSEMBLY
5920-00-607-3073 The components of a fuseholder which together form the carrier to hold a fuse in position to provide electrical contact, but which in itself is not a complete functioning item and cannot be assigned a more definite item name.
Alternate Parts: 1469550, 1469550, 5920-00-607-3073, 00-607-3073, 5920006073073, 006073073
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1961 | 00-607-3073 | 62213 ( FUSEHOLDER SUBASSEMBLY ) |
REFERENCE DRAWINGS & PICTURES

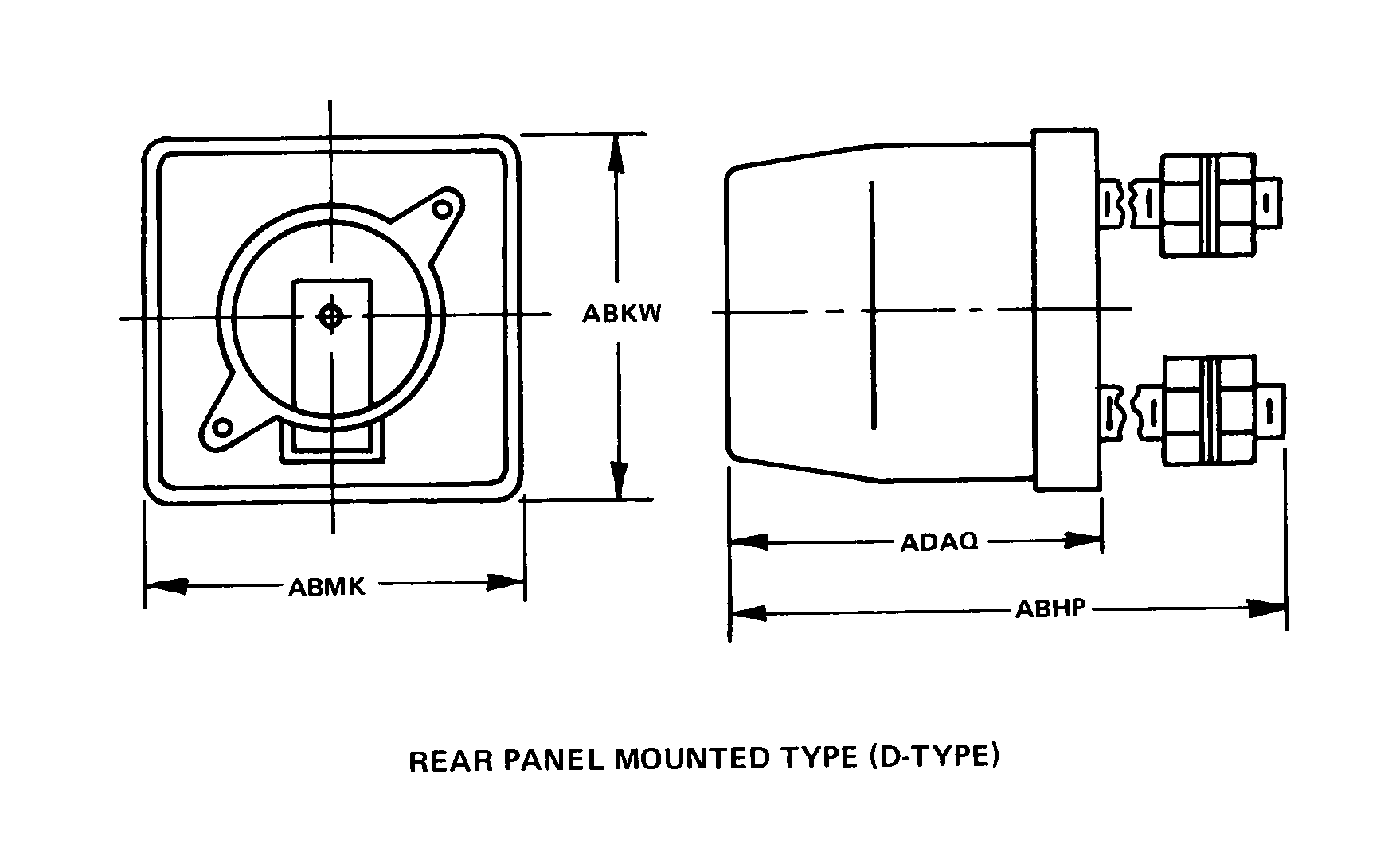

REAR PANEL MOUNTED TYPE (D-TYPE)
Cross Reference | NSN 5920-00-607-3073
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1469550 | 44114 | BAE SYSTEMS LAND & ARMAMENTS L.P. |
| 1469550 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
Technical Data | NSN 5920-00-607-3073
| Characteristic | Specifications |
|---|---|
| FUSE ACCOMMODATION QUANTITY | 2 |
| FUSE TERMINAL TYPE ACCOMMODATED | FERRULE |
| BODY STYLE | REAR PANEL MOUNTED TYPE (D-TYPE) |
| OVERALL LENGTH | 2.718 INCHES NOMINAL |
| OVERALL HEIGHT | 2.125 INCHES NOMINAL |
| OVERALL WIDTH | 2.250 INCHES NOMINAL |
