NSN 5920-00-806-9475
Part Details | EXTRACTOR POST FUSEHOLDER
5920-00-806-9475 A fuseholder in which the clips or contacts for electrical connection to the fuse are mounted in a tubular body or similar inclosure which surrounds the fuse. It generally contains a removable cap or knob. It includes in-the-line type and those designated as miniature type FUSEHOLDER (as modified).
Alternate Parts: 2651098000, 265-1098-000, 09P206434, 340129, 2651098000, 265-1098-000, 265109800, 265-1098-00, 5920-00-806-9475, 00-806-9475, 5920008069475, 008069475
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1962 | 00-806-9475 | 28909 ( FUSEHOLDER, EXTRACTOR POST ) |
REFERENCE DRAWINGS & PICTURES

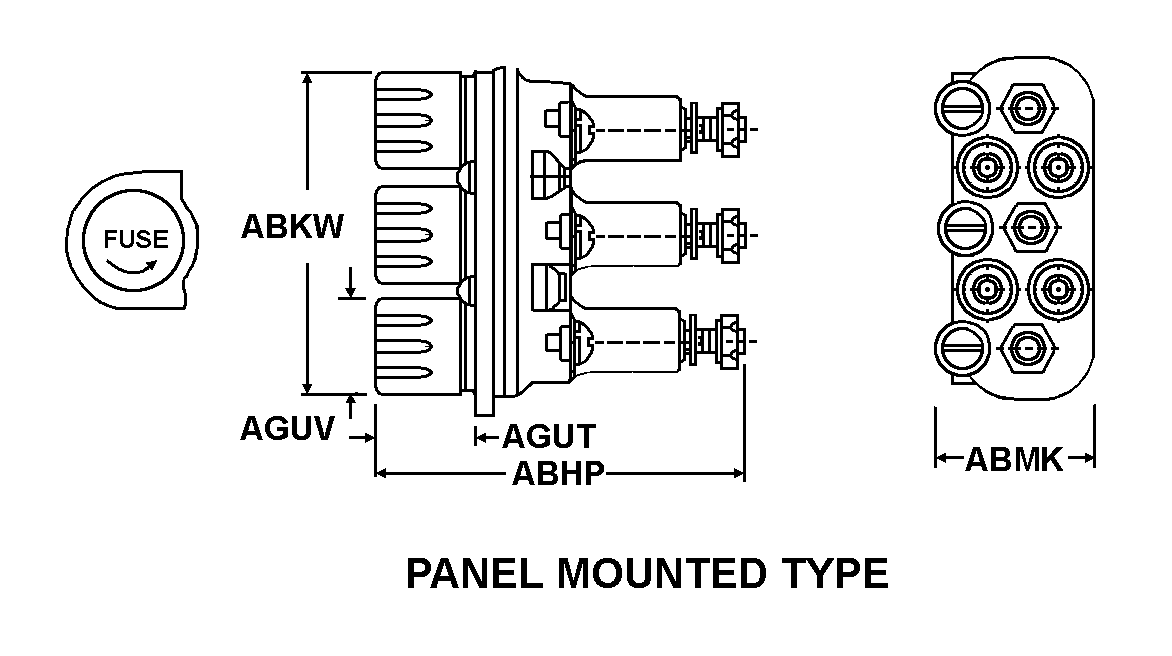

PANEL MOUNTED TYPE
IN-LINE ALONG LENGTH AND WIDTH
Cross Reference | NSN 5920-00-806-9475
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 265-1098-000 | 94033 | CARDWELL CONDENSER CORPLAPOINTE-ADMIRAL DIV |
| 09P206434 | 98738 | HERLEY CHICAGODBA STEWART WARNER ELECTRONICS |
| 340129 | 75915 | LITTELFUSE, INC. |
| 265-1098-000 | 13499 | ROCKWELL COLLINS, INC.DBA GOVERNMENT SYSTEMS |
| 265-1098-00 | 13499 | ROCKWELL COLLINS, INC.DBA GOVERNMENT SYSTEMS |
Technical Data | NSN 5920-00-806-9475
| Characteristic | Specifications |
|---|---|
| FUSE ACCOMMODATION QUANTITY | 4 |
| CURRENT CARRYING RATING IN AMPS | 30.0 |
| VOLTAGE IN VOLTS | 300.0 |
| FUSE TERMINAL TYPE ACCOMMODATED | FERRULE |
| TERMINAL TYPE AND QUANTITY | 8 TAB, SOLDER LUG |
| CONTACT MATERIAL | BRASS |
| CONTACT SURFACE TREATMENT | COPPER AND TIN PLATED AND ZINC PLATED |
| BODY STYLE | PANEL MOUNTED TYPE |
| OVERALL LENGTH | 2.241 INCHES NOMINAL |
| OVERALL HEIGHT | 2.187 INCHES NOMINAL |
| OVERALL WIDTH | 1.125 INCHES NOMINAL |
| LENGTH FROM FRONT PROTRUSION TO MOUNTING SURFACE | 0.343 INCHES NOMINAL |
| CAP DIAMETER | 0.375 INCHES NOMINAL |
| MOUNTING HOLE STYLE | IN-LINE ALONG LENGTH AND WIDTH |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG LENGTH | 0.812 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG WIDTH | 0.937 INCHES NOMINAL |
| MOUNTING HOLE QUANTITY | 4 |
| MOUNTING HOLE DIAMETER | 0.140 INCHES NOMINAL |
| ACCOMMODATED FUSE LENGTH | 1.250 INCHES NOMINAL |
| ACCOMMODATED FERRULE DIAMETER | 0.250 INCHES NOMINAL |
| INTERRUPTION INDICATOR METHOD | TEST HOLE |
| ENVIRONMENTAL PROTECTION | DRIPPROOF AND SHOCK PROOF |
| TERMINAL MATERIAL | BRASS |
| TERMINAL SURFACE TREATMENT | SOLDER DIP |
| BODY MATERIAL | PLASTIC, PHENOLIC, MIL-M-14, TYPE MFE |
