Part Details | BLOCK FUSEHOLDER
5920-00-998-9528 A fuseholder in which the fuseholder stud and/or clips and insulation are mounted on a flat base. Excludes FUSEHOLDER, RECEPTACLE.
Alternate Parts: 3595, 5920-00-998-9528, 00-998-9528, 5920009989528, 009989528
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 06, 1967 | 00-998-9528 | 28908 ( FUSEHOLDER, BLOCK ) |
REFERENCE DRAWINGS & PICTURES

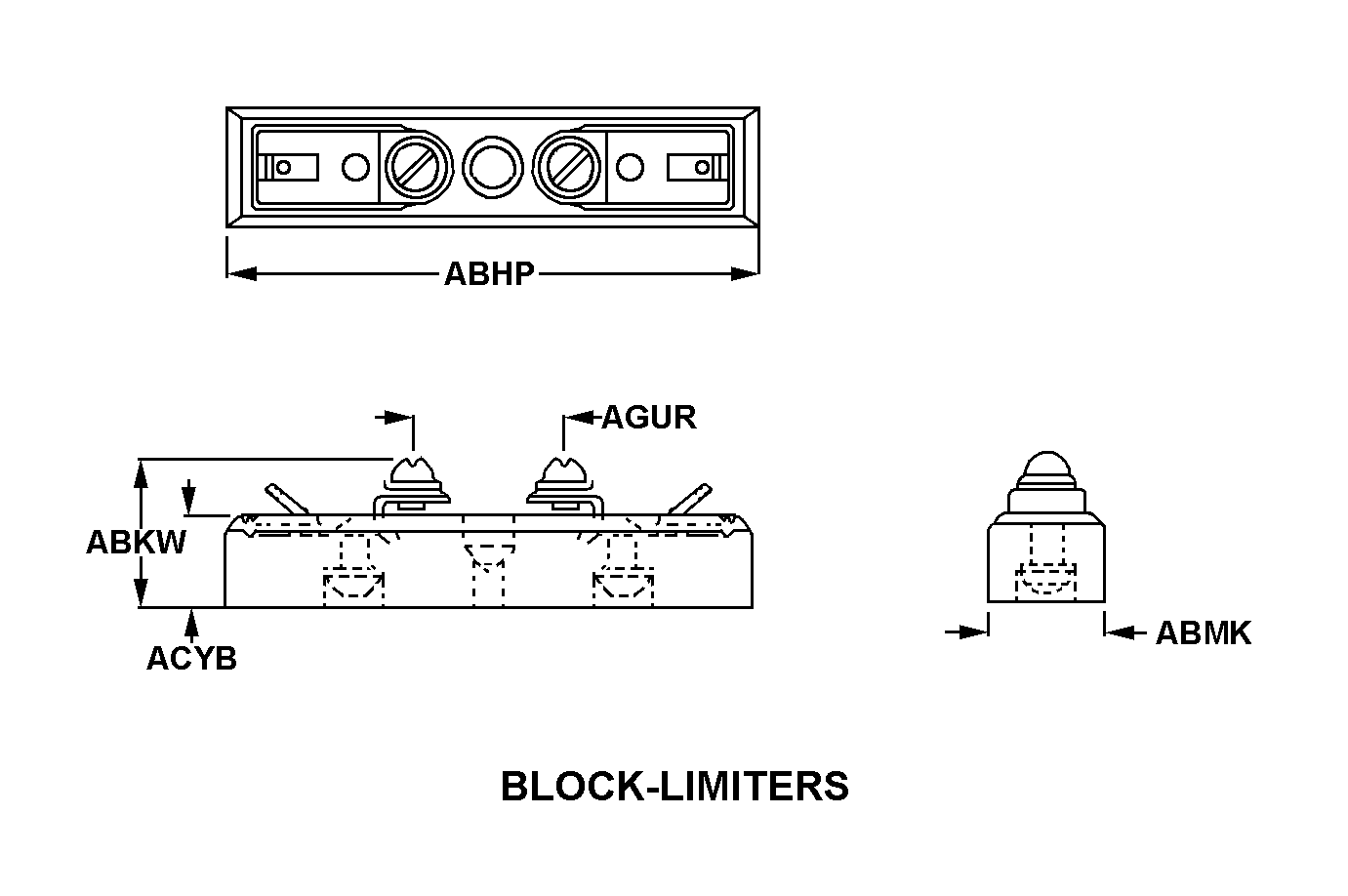

BLOCK-LIMITERS
IN-LINE ALONG THE LENGTH
Cross Reference | NSN 5920-00-998-9528
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3595 | 71400 | COOPER BUSSMANN, LLCDBA COOPER BUSSMANN |
Technical Data | NSN 5920-00-998-9528
| Characteristic | Specifications |
|---|---|
| FUSE ACCOMMODATION QUANTITY | 2 |
| CURRENT CARRYING RATING IN AMPS | 30.0 |
| VOLTAGE IN VOLTS | 600.0 |
| FUSE TERMINAL TYPE ACCOMMODATED | THREADED STUD |
| TERMINAL TYPE AND QUANTITY | 2 SCREW |
| CONTACT MATERIAL | BRASS |
| BODY STYLE | BLOCK-LIMITERS |
| OVERALL LENGTH | 3.500 INCHES NOMINAL |
| OVERALL HEIGHT | 0.500 INCHES NOMINAL |
| OVERALL WIDTH | 1.250 INCHES NOMINAL |
| MOUNTING HOLE STYLE | IN-LINE ALONG THE LENGTH |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG LENGTH | 1.300 INCHES NOMINAL |
| MOUNTING HOLE QUANTITY | 2 |
| MOUNTING HOLE DIAMETER | 0.216 INCHES NOMINAL |
| ACCOMMODATED FUSE LENGTH | 2.875 INCHES NOMINAL |
| ACCOMMODATED FUSE WIDTH | 0.562 INCHES NOMINAL |
| INTERNAL CIRCUIT CONFIGURATION AND POLE QUANTITY | 1 POLE, MAINLINE, FUSED |
| SPECIFICATION/STANDARD DATA | 71400-3595 MANUFACTURERS SPECIFICATION |
