NSN 5920-01-018-2286
Part Details | ENCLOSED LINK FUSE
5920-01-018-2286 A fuse in which the element is inclosed in a body of other than cylindrical shape. It may include visual indication that the fusible element is severed. For cylindrical items, see FUSE, CARTRIDGE. Excludes FUSE, OPEN LINK; and FUSE LINK, ELECTRICAL.
Alternate Parts: PL4100, A012136, A012-136, 5920-01-018-2286, 01-018-2286, 5920010182286, 010182286
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAR 23, 1976 | 01-018-2286 | 00249 ( FUSE, ENCLOSED LINK ) |
REFERENCE DRAWINGS & PICTURES

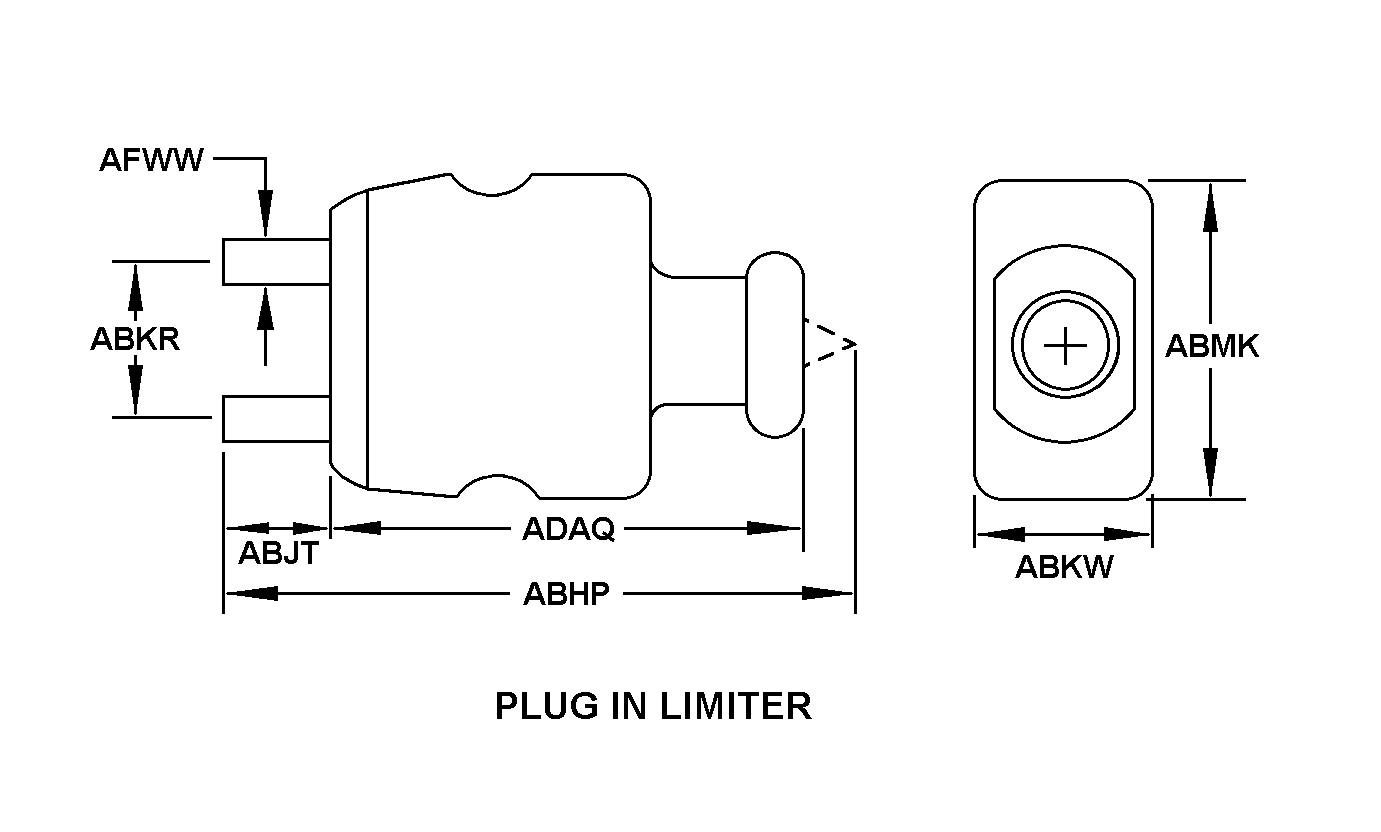

PLUG IN LIMITER
Cross Reference | NSN 5920-01-018-2286
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PL4100 | 51984 | NEC AMERICA INC |
| A012-136 | 51984 | NEC AMERICA INC |
Technical Data | NSN 5920-01-018-2286
| Characteristic | Specifications |
|---|---|
| BODY STYLE | PLUG IN LIMITER |
| OVERALL LENGTH | 35.0 MILLIMETERS NOMINAL |
| TERMINAL LENGTH | 12.0 MILLIMETERS NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 22.0 MILLIMETERS NOMINAL |
| OVERALL HEIGHT | 10.0 MILLIMETERS NOMINAL |
| OVERALL WIDTH | 32.0 MILLIMETERS NOMINAL |
| BODY LENGTH | 23.0 MILLIMETERS NOMINAL |
| TERMINAL WIDTH | 6.8 MILLIMETERS NOMINAL |
| CONTINUOUS CURRENT RATING IN AMPS | 10.000 |
| MAXIMUM VOLTAGE RATING IN VOLTS | 100.0 AC AND 100.0 DC |
| CIRCUIT OVER-CURRENT INTERRUPTION TYPE | NORMAL INSTANTANEOUS |
| INTERRUPTION INDICATOR METHOD | VISIBLE ELEMENT |
| SHORT-CIRCUIT/INTERRUPT CURRENT RATING IN AMPS | 2500.0 |
| CASE MATERIAL | PLASTIC, PHENOLIC RESIN, PAPER BASE |
| TERMINAL MATERIAL | PHOSPHOR BRONZE |
