NSN 5920-01-035-0333
Part Details | CARTRIDGE FUSE
5920-01-035-0333 A fuse in which the element is inclosed in a cylindrical body. The element may be renewable. The terminals may be of varying types. It may contain a visual indication that the fusible element is severed, and may also provide an audible alarm through auxiliary circuitry. For noncylindrical items, see FUSE, INCLOSED LINK.
Alternate Parts: 2267177P14, 226-7177P14, 2267177P14, 226-7177P14, 5920-01-035-0333, 01-035-0333, 5920010350333, 010350333
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | FEB 03, 1977 | 01-035-0333 | 00248 ( FUSE, CARTRIDGE ) |
REFERENCE DRAWINGS & PICTURES

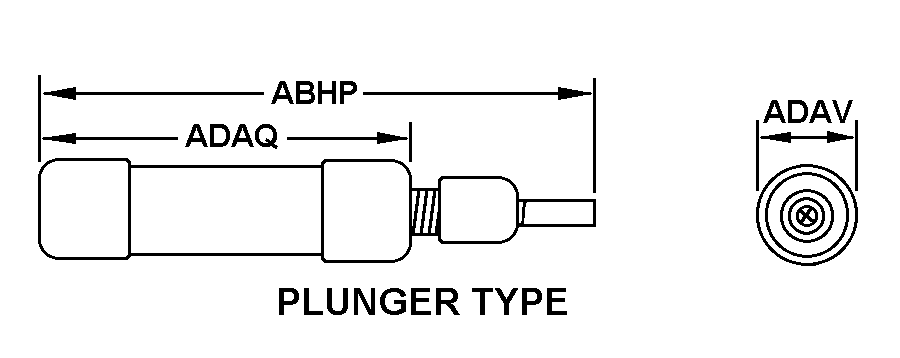

PLUNGER TYPE
Cross Reference | NSN 5920-01-035-0333
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 226-7177P14 | 49956 | RAYTHEON COMPANYDBA RAYTHEON |
| 226-7177P14 | 3B150 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 5920-01-035-0333
| Characteristic | Specifications |
|---|---|
| BODY STYLE | PLUNGER TYPE |
| OVERALL LENGTH | 1.750 INCHES NOMINAL |
| BODY LENGTH | 1.250 INCHES NOMINAL |
| OVERALL DIAMETER | 0.281 INCHES NOMINAL |
| CONTINUOUS CURRENT RATING IN AMPS | 3.200 |
| MAXIMUM VOLTAGE RATING IN VOLTS | 500.0 DC |
| CIRCUIT OVER-CURRENT INTERRUPTION TYPE | NORMAL INSTANTANEOUS |
| SHORT-CIRCUIT/INTERRUPT CURRENT RATING IN AMPS | 3000.0 |
| INTERRUPTION INDICATOR METHOD | OPAQUE BODY |
| TERMINAL SURFACE TREATMENT | NICKEL |
| FEATURES PROVIDED | NONRENEWABLE FUSIBLE ELEMENT |
| CASE MATERIAL | PLASTIC, MELAMINE |
| TERMINAL MATERIAL | BRASS |
