NSN 5920-01-042-5058
Part Details | OPEN LINK FUSE
5920-01-042-5058 A fuse in which the element is not inclosed. It does not contain an alarm indication of the element being severed. See also FUSE LINK, ELECTRICAL and FUSE, INCLOSED LINK.
Alternate Parts: 159011800, 159-0118-00, 5920-01-042-5058, 01-042-5058, 5920010425058, 010425058
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 11, 1977 | 01-042-5058 | 14927 ( FUSE, OPEN LINK ) |
REFERENCE DRAWINGS & PICTURES

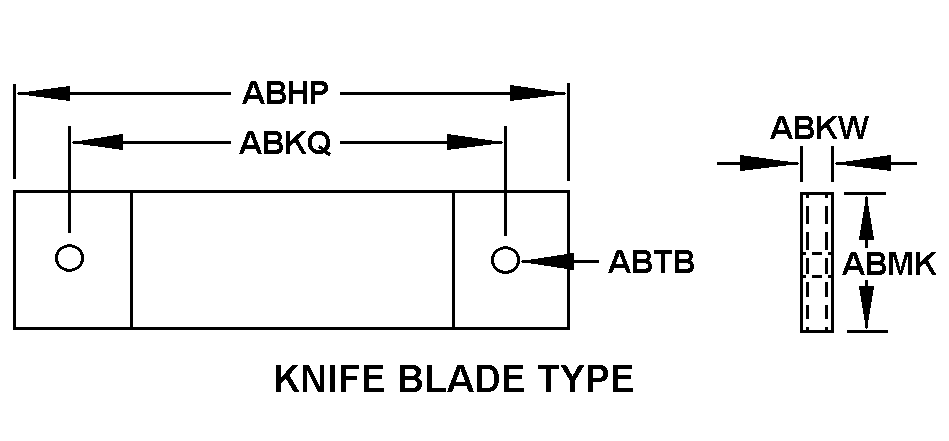

KNIFE BLADE TYPE
Cross Reference | NSN 5920-01-042-5058
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 159-0118-00 | 80009 | TEKTRONIX, INC.DBA TEKTRONIX |
Technical Data | NSN 5920-01-042-5058
| Characteristic | Specifications |
|---|---|
| BODY STYLE | KNIFE BLADE TYPE |
| OVERALL LENGTH | 0.660 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 0.560 INCHES NOMINAL |
| OVERALL HEIGHT | 0.099 INCHES NOMINAL |
| OVERALL WIDTH | 0.330 INCHES NOMINAL |
| CONTINUOUS CURRENT RATING IN AMPS | 10.000 |
| MAXIMUM VOLTAGE RATING IN VOLTS | 32.0 AC AND 32.0 DC |
| CIRCUIT OVER-CURRENT INTERRUPTION TYPE | NORMAL INSTANTANEOUS |
| INTERRUPTION INDICATOR METHOD | VISIBLE ELEMENT |
| SHORT-CIRCUIT/INTERRUPT CURRENT RATING IN AMPS | 10000.0 |
| TERMINAL SURFACE TREATMENT | SOLDER DIP |
