NSN 5920-01-050-6557
Part Details | CARTRIDGE FUSE
5920-01-050-6557 A fuse in which the element is inclosed in a cylindrical body. The element may be renewable. The terminals may be of varying types. It may contain a visual indication that the fusible element is severed, and may also provide an audible alarm through auxiliary circuitry. For noncylindrical items, see FUSE, INCLOSED LINK.
Alternate Parts: Q220998, GSGB75 AND GSIPBS, GISG100075, GISG1000/75, GISB100075, GISB1000-75, 28943472, 2894347-2, 28943472, 2894347-2, 28943472, 2894347-2, 5920-01-050-6557, 01-050-6557, 5920010506557, 010506557
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | NOV 12, 1977 | 01-050-6557 | 00248 ( FUSE, CARTRIDGE ) |
REFERENCE DRAWINGS & PICTURES

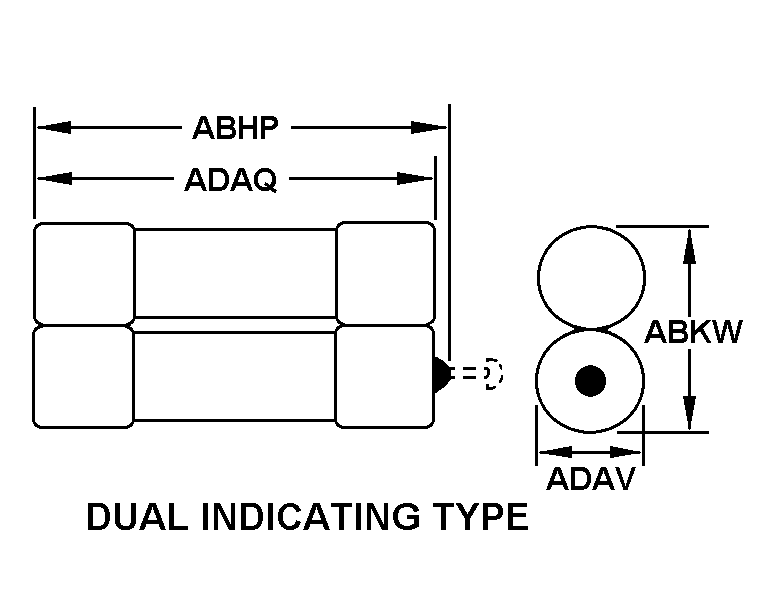

DUAL INDICATING TYPE
Cross Reference | NSN 5920-01-050-6557
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| Q220998 | 71424 | FERRAZ SHAWMUT INC |
| GSGB75 AND GSIPBS | K2995 | GE POWER CONTROLS LTD |
| GISG1000/75 | K2995 | GE POWER CONTROLS LTD |
| GISB1000-75 | K2995 | GE POWER CONTROLS LTD |
| 2894347-2 | 54X10 | RAYTHEON COMPANYDBA RAYTHEON |
| 2894347-2 | 49956 | RAYTHEON COMPANYDBA RAYTHEON |
| 2894347-2 | 3B150 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 5920-01-050-6557
| Characteristic | Specifications |
|---|---|
| BODY STYLE | DUAL INDICATING TYPE |
| OVERALL LENGTH | 3.078 INCHES NOMINAL |
| OVERALL HEIGHT | 1.130 INCHES NOMINAL |
| BODY LENGTH | 2.950 INCHES NOMINAL |
| OVERALL DIAMETER | 0.690 INCHES NOMINAL |
| CONTINUOUS CURRENT RATING IN AMPS | 55.000 |
| MAXIMUM VOLTAGE RATING IN VOLTS | 1000.0 AC |
| CIRCUIT OVER-CURRENT INTERRUPTION TYPE | NORMAL INSTANTANEOUS |
| SHORT-CIRCUIT/INTERRUPT CURRENT RATING IN AMPS | 75.0 |
| INTERRUPTION INDICATOR METHOD | TERMINAL-VISUAL OR ALARM |
| TERMINAL SURFACE TREATMENT | NICKEL PLATED |
| FEATURES PROVIDED | NONRENEWABLE FUSIBLE ELEMENT |
| SPECIAL FEATURES | FUSE INCORPORATES A TRIP INDICATOR FUSE WITH A SPRING LOADED PLUNGER |
