NSN 5920-01-085-0825
Part Details | ENCLOSED LINK FUSE
5920-01-085-0825 A fuse in which the element is inclosed in a body of other than cylindrical shape. It may include visual indication that the fusible element is severed. For cylindrical items, see FUSE, CARTRIDGE. Excludes FUSE, OPEN LINK; and FUSE LINK, ELECTRICAL.
Alternate Parts: ATC20, ATC-20, ATC20, ATO20, AA5556901009, AA55569/01-009, AA5556901, AA55569/01, AA555691, A-A-55569/1, 3001964, 12004009, ORC26532, ORC-26-532, 12004009, 257020, AT0020, AT0-020, ATO20, ATO-20, 25162020, 1670820, 1670820, 6408030020, 64-0803-0020, 2200842, 220-0842, 621096, 9691601, 969160-1, 5920-01-085-0825, 01-085-0825, 5920010850825, 010850825
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | OCT 31, 1979 | 01-085-0825 | 00249 ( FUSE, ENCLOSED LINK ) |
REFERENCE DRAWINGS & PICTURES

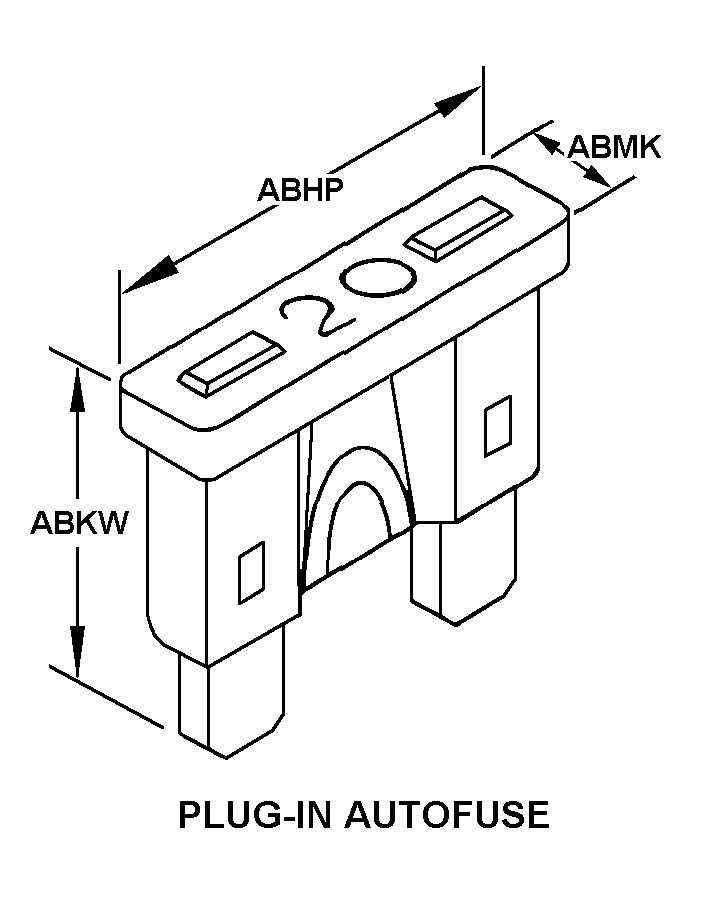

PLUG-IN AUTOFUSE
Cross Reference | NSN 5920-01-085-0825
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ATC-20 | 1UW16 | COOPER BUSSMANN |
| ATC20 | 71400 | COOPER BUSSMANN, LLCDBA COOPER BUSSMANN |
| ATO20 | 79550 | ELECTRO-WIRE PRODUCTS INC |
| AA55569/01-009 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTIONPROMULGATED BY GENERAL SERVICES |
| AA55569/01 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTIONPROMULGATED BY GENERAL SERVICES |
| A-A-55569/1 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTIONPROMULGATED BY GENERAL SERVICES |
| 3001964 | 1EFH8 | GENERAL DYNAMICS LAND SYSTEMS -FORCE PROTECTION INC. |
| 12004009 | 11862 | GENERAL MOTORS CORPCHEVROLET MOTOR DIV |
| ORC-26-532 | KC050 | HOLYHEAD MARINE SERVICES LTD |
| 12004009 | 4RWU5 | LADD INDUSTRIES, LLCDIV LADD DISTRIBUTION LLC |
| 257020 | 75915 | LITTELFUSE, INC. |
| AT0-020 | 75915 | LITTELFUSE, INC. |
| ATO-20 | 75915 | LITTELFUSE, INC. |
| 25162020 | 89619 | MACK TRUCKS, INC.DBA MACUNGIE OPERATIONS |
| 1670820 | 45152 | OSHKOSH CORPORATION |
| 1670820 | 75Q65 | OSHKOSH DEFENSE, LLC |
| 64-0803-0020 | 04664 | PIERCE MANUFACTURING, INC. |
| 220-0842 | FA0Q5 | RS COMPONENTS SAS |
| 621096 | 31033 | TRW INC TRW INTL TRADE GOVERNMENTSALES DEPT |
| 969160-1 | S3562 | VOLVO AB |
Technical Data | NSN 5920-01-085-0825
| Characteristic | Specifications |
|---|---|
| BODY STYLE | PLUG-IN AUTOFUSE |
| OVERALL LENGTH | 0.750 INCHES NOMINAL |
| OVERALL HEIGHT | 0.750 INCHES NOMINAL |
| OVERALL WIDTH | 0.200 INCHES NOMINAL |
| CONTINUOUS CURRENT RATING IN AMPS | 20.000 |
| MAXIMUM VOLTAGE RATING IN VOLTS | 32.0 AC AND 32.0 DC |
| CIRCUIT OVER-CURRENT INTERRUPTION TYPE | NORMAL INSTANTANEOUS |
| INTERRUPTION INDICATOR METHOD | VISIBLE ELEMENT |
| SHORT-CIRCUIT/INTERRUPT CURRENT RATING IN AMPS | 10000.0 |
| TERMINAL SURFACE TREATMENT | SOLDER DIP |
| SPECIAL FEATURES | HOUSING COLOR-CODED YELLOW TO INDICATE AMPERAGE |
| CASE MATERIAL | PLASTIC |
| TERMINAL MATERIAL | COPPER ALLOY |
| END ITEM IDENTIFICATION | NSN 4210-01-486-1035 TFFT (TACTICAL FIRE FIGHTING TRUCK); MRAP BUFFALO MK2A2; MRAP - M-ATV |
