NSN 5920-01-109-9997
Part Details | BLOCK FUSEHOLDER
5920-01-109-9997 A fuseholder in which the fuseholder stud and/or clips and insulation are mounted on a flat base. Excludes FUSEHOLDER, RECEPTACLE.
Alternate Parts: 6F30A3SP, 6F30A35P, 6F30A-35P, 5920-01-109-9997, 01-109-9997, 5920011099997, 011099997
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAR 25, 1981 | 01-109-9997 | 28908 ( FUSEHOLDER, BLOCK ) |
REFERENCE DRAWINGS & PICTURES
SIDE BARRIER TYPE

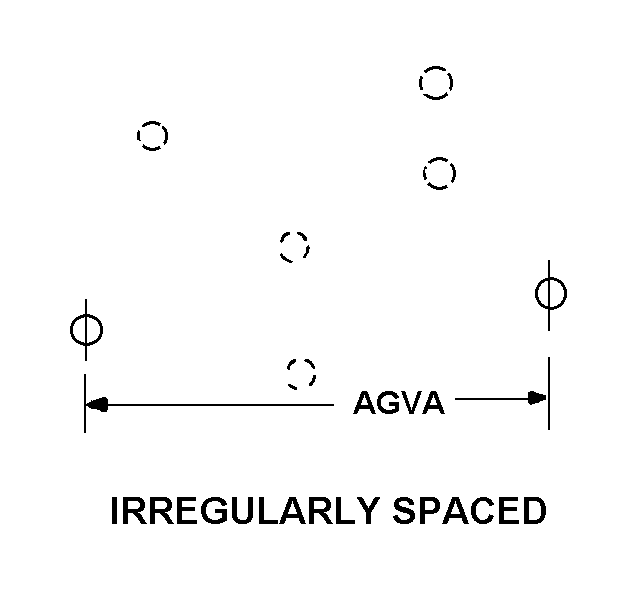

IRREGULARLY SPACED
Cross Reference | NSN 5920-01-109-9997
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6F30A3SP | 38151 | MARATHON ELECTRIC MANUFACTURINGCORPORATION |
| 6F30A-35P | 26405 | MARATHON SPECIAL PRODUCTSCORPORATION |
Technical Data | NSN 5920-01-109-9997
| Characteristic | Specifications |
|---|---|
| FUSE ACCOMMODATION QUANTITY | 3 |
| CURRENT CARRYING RATING IN AMPS | 30.0 |
| VOLTAGE IN VOLTS | 600.0 |
| FUSE TERMINAL TYPE ACCOMMODATED | FERRULE |
| TERMINAL TYPE AND QUANTITY | 6 COMPRESSION |
| CONTACT MATERIAL | COPPER ALLOY |
| CONTACT SURFACE TREATMENT | TIN PLATED |
| BODY STYLE | SIDE BARRIER TYPE |
| OVERALL LENGTH | 6.750 INCHES NOMINAL |
| OVERALL HEIGHT | 2.125 INCHES NOMINAL |
| OVERALL WIDTH | 5.062 INCHES NOMINAL |
| BASE THICKNESS | 0.750 INCHES NOMINAL |
| MOUNTING HOLE STYLE | IRREGULARLY SPACED |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG LENGTH | 3.125 INCHES NOMINAL |
| MOUNTING HOLE QUANTITY | 4 |
| MOUNTING HOLE DIAMETER | 0.281 INCHES NOMINAL |
| ACCOMMODATED FUSE LENGTH | 5.000 INCHES NOMINAL |
| ACCOMMODATED FERRULE DIAMETER | 0.812 INCHES NOMINAL |
| INTERNAL CIRCUIT CONFIGURATION AND POLE QUANTITY | 3 POLE, MAINLINE, FUSED |
| TERMINAL MATERIAL | COPPER ALLOY |
| TERMINAL SURFACE TREATMENT | TIN PLATED |
| BODY MATERIAL | PLASTIC, PHENOLIC, MOULDED |
