NSN 5920-01-148-8359
Part Details | THERMAL FUSE LINK
5920-01-148-8359 A replaceable, protective, current carrying element for heaters, heat ducts, and like items. It is designed with fusible material which will melt at known ambient temperatures and disconnect the item from its power source. See also LINK, FUSIBLE, FIRE.
Alternate Parts: 102275, 5920-01-148-8359, 01-148-8359, 5920011488359, 011488359
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAR 11, 1983 | 01-148-8359 | 20348 ( FUSE LINK, THERMAL ) |

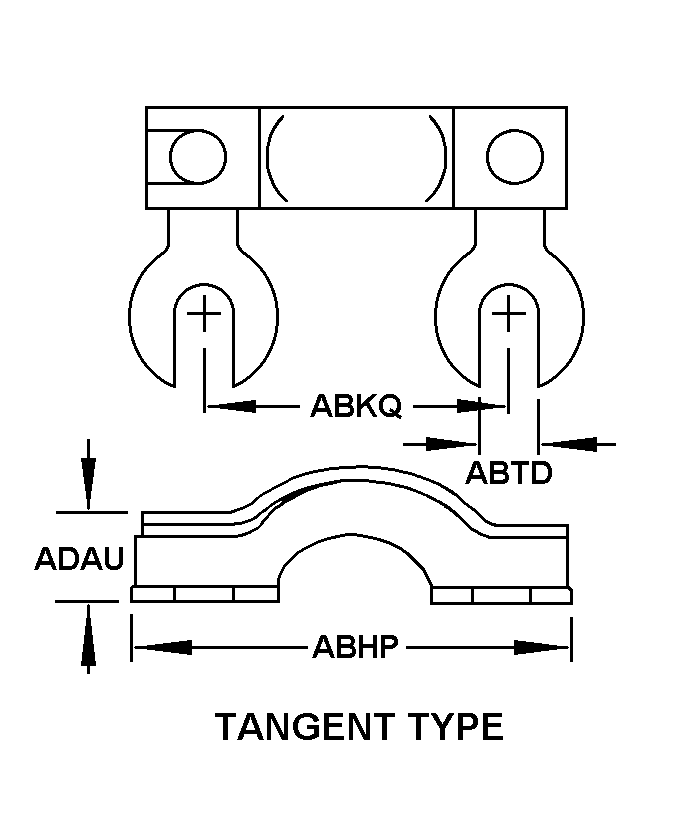

REFERENCE DRAWINGS & PICTURES
TANGENT TYPE
Cross Reference | NSN 5920-01-148-8359
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 102275 | 25980 | GRACO INC. |
Technical Data | NSN 5920-01-148-8359
| Characteristic | Specifications |
|---|---|
| BODY STYLE | TANGENT TYPE |
| OVERALL LENGTH | 1.156 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 0.906 INCHES NOMINAL |
| MOUNTING SLOT WIDTH | 0.164 INCHES NOMINAL |
| BODY HEIGHT | 0.156 INCHES NOMINAL |
| CONTINUOUS CURRENT RATING IN AMPS | 30.000 |
| MAXIMUM VOLTAGE RATING IN VOLTS | 600.0 AC |
| INTERRUPTION INDICATOR METHOD | VISIBLE ELEMENT |
| TEMP RATING | 235.0 DEG FAHRENHEIT |
| ELEMENT MELTING TEMP | 285.0 DEG FAHRENHEIT |
| CASE MATERIAL | PHOSPHOR BRONZE |
| TERMINAL MATERIAL | BRASS |
