NSN 5920-01-155-1128
Part Details | CARTRIDGE FUSE
5920-01-155-1128 A fuse in which the element is inclosed in a cylindrical body. The element may be renewable. The terminals may be of varying types. It may contain a visual indication that the fusible element is severed, and may also provide an audible alarm through auxiliary circuitry. For noncylindrical items, see FUSE, INCLOSED LINK.
Alternate Parts: FRSR125, FRS-R125, WF181432002, WF1814/32-002, WF181465, W-F-1814/65, WF181432, W-F-1814/32, WF181465D5125, WF1814/65-D5125, 5920-01-155-1128, 01-155-1128, 5920011551128, 011551128
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 05, 1983 | 01-155-1128 | 00248 ( FUSE, CARTRIDGE ) |
REFERENCE DRAWINGS & PICTURES

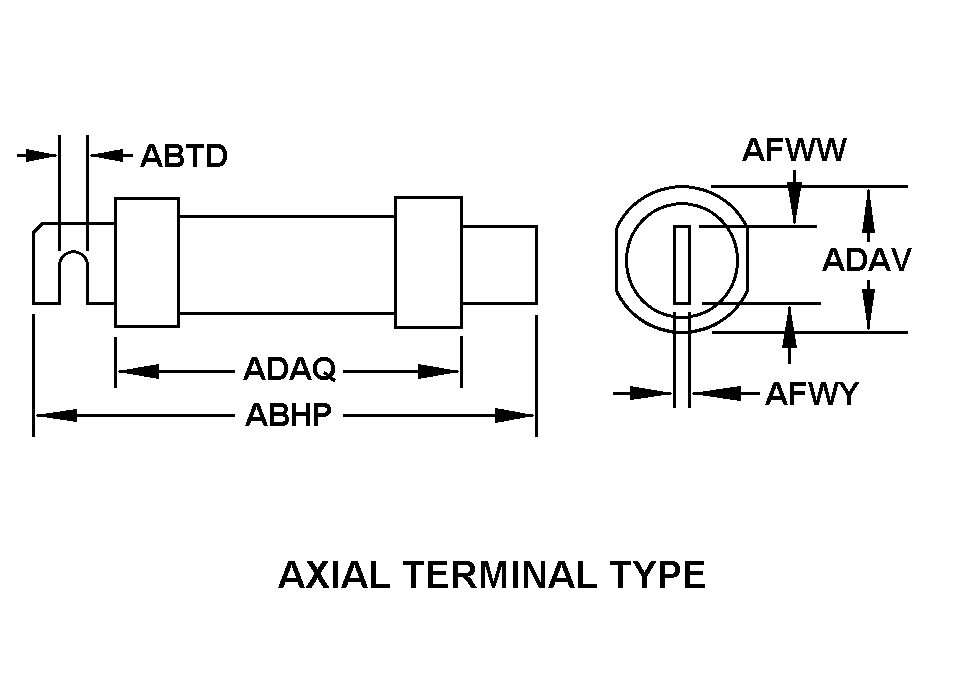

AXIAL TERMINAL TYPE
Cross Reference | NSN 5920-01-155-1128
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FRS-R125 | 71400 | COOPER BUSSMANN, LLCDBA COOPER BUSSMANN |
| WF1814/32-002 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| W-F-1814/65 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| W-F-1814/32 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| WF1814/65-D5125 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
Technical Data | NSN 5920-01-155-1128
| Characteristic | Specifications |
|---|---|
| BODY STYLE | AXIAL TERMINAL TYPE |
| OVERALL LENGTH | 9.625 INCHES NOMINAL |
| MOUNTING SLOT WIDTH | 0.281 INCHES NOMINAL |
| BODY LENGTH | 6.125 INCHES MINIMUM AND 6.781 INCHES MAXIMUM |
| OVERALL DIAMETER | 2.120 INCHES MAXIMUM |
| TERMINAL WIDTH | 1.125 INCHES NOMINAL |
| TERMINAL THICKNESS | 0.188 INCHES NOMINAL |
| CONTINUOUS CURRENT RATING IN AMPS | 125.000 |
| MAXIMUM VOLTAGE RATING IN VOLTS | 600.0 AC AND 600.0 DC |
| CIRCUIT OVER-CURRENT INTERRUPTION TYPE | TIME DELAY |
| CIRCUIT OVER-CURRENT INTERRUPTION DELAY TIME IN SECONDS | 10.0 500 PCT OF CURRENT RATING |
| SHORT-CIRCUIT/INTERRUPT CURRENT RATING IN AMPS | 200000.0 |
| INTERRUPTION INDICATOR METHOD | OPAQUE BODY |
| TERMINAL SURFACE TREATMENT | NICKEL PLATED |
| FEATURES PROVIDED | NONRENEWABLE FUSIBLE ELEMENT |
| TEST DATA DOCUMENT | 81348-W-F-1814 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.). |
| SPECIFICATION/STANDARD DATA | 81348-W-F-1814 TO 65 GOVERNMENT SPECIFICATION |
| CASE MATERIAL | 0$DCJ0000$DPCAAAU |
| TERMINAL MATERIAL | 0$DCK0000 |
