NSN 5920-01-168-7475
Part Details | EXTRACTOR POST FUSEHOLDER
5920-01-168-7475 A fuseholder in which the clips or contacts for electrical connection to the fuse are mounted in a tubular body or similar inclosure which surrounds the fuse. It generally contains a removable cap or knob. It includes in-the-line type and those designated as miniature type FUSEHOLDER (as modified).
Alternate Parts: 2370015, 237-0015, 342014PA, 342014P, 5920-01-168-7475, 01-168-7475, 5920011687475, 011687475
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 22, 1983 | 01-168-7475 | 28909 ( FUSEHOLDER, EXTRACTOR POST ) |
REFERENCE DRAWINGS & PICTURES
BUSHING MOUNTED TYPE

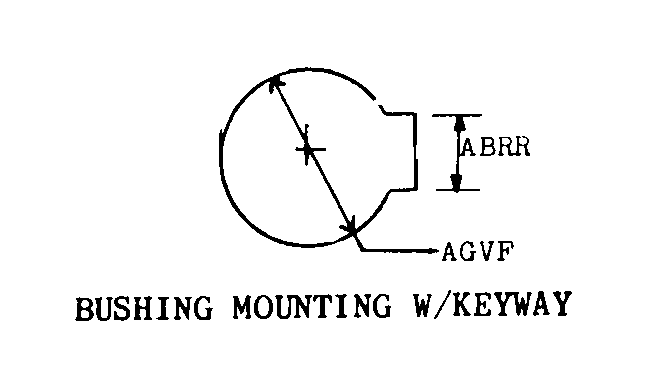

BUSHING MOUNTING W/KEYWAY
Cross Reference | NSN 5920-01-168-7475
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 237-0015 | 54817 | AUTEK SYSTEMS CORP |
| 342014PA | 75915 | LITTELFUSE, INC. |
| 342014P | 75915 | LITTELFUSE, INC. |
Technical Data | NSN 5920-01-168-7475
| Characteristic | Specifications |
|---|---|
| FUSE ACCOMMODATION QUANTITY | 1 |
| CURRENT CARRYING RATING IN AMPS | 20.0 |
| VOLTAGE IN VOLTS | 250.0 |
| FUSE TERMINAL TYPE ACCOMMODATED | FERRULE |
| TERMINAL TYPE AND QUANTITY | 2 TAB, SOLDER LUG |
| CONTACT MATERIAL | BRASS |
| CONTACT SURFACE TREATMENT | TIN PLATED |
| BODY STYLE | BUSHING MOUNTED TYPE |
| OVERALL LENGTH | 1.968 INCHES NOMINAL |
| OVERALL DIAMETER | 0.781 INCHES NOMINAL |
| LENGTH FROM FRONT PROTRUSION TO MOUNTING SURFACE | 0.749 INCHES NOMINAL |
| BUSHING THREAD LENGTH | 0.843 INCHES NOMINAL |
| CAP DIAMETER | 0.687 INCHES NOMINAL |
| MOUNTING HOLE STYLE | BUSHING MOUNTING W/KEYWAY |
| KEYWAY WIDTH | 0.093 INCHES NOMINAL |
| BUSHING HOLE DIAMETER | 0.343 INCHES NOMINAL |
| MOUNTING HOLE QUANTITY | 1 |
| ACCOMMODATED FUSE LENGTH | 1.250 INCHES NOMINAL |
| ENVIRONMENTAL PROTECTION | DRIPPROOF |
