NSN 5920-01-181-2673
Part Details | FUSEHOLDER SUBASSEMBLY
5920-01-181-2673 The components of a fuseholder which together form the carrier to hold a fuse in position to provide electrical contact, but which in itself is not a complete functioning item and cannot be assigned a more definite item name.
Alternate Parts: 4042564, 345101010, 345101-010, 352089500, 352-0895-00, 031.3577, FAU 031.3577, FAU 031.3573, 5920-01-181-2673, 01-181-2673, 5920011812673, 011812673
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 08, 1984 | 01-181-2673 | 62213 ( FUSEHOLDER SUBASSEMBLY ) |
REFERENCE DRAWINGS & PICTURES

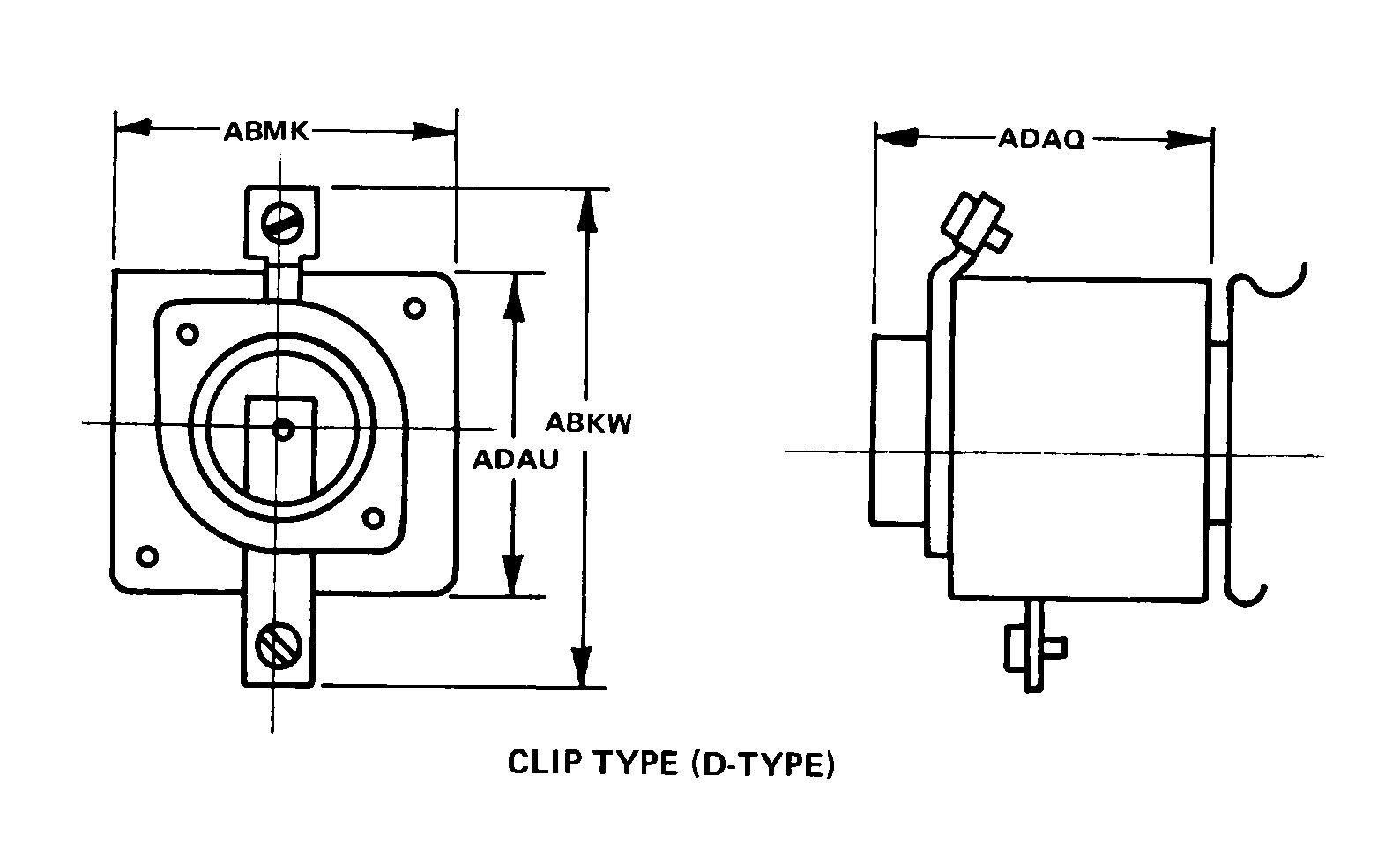

CLIP TYPE (D-TYPE)
Cross Reference | NSN 5920-01-181-2673
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4042564 | 05083 | BACHARACH, INC. |
| 345101-010 | 75915 | LITTELFUSE, INC. |
| 352-0895-00 | 75915 | LITTELFUSE, INC. |
| 031.3577 | 61935 | SCHURTER, INC. |
| FAU 031.3577 | 61935 | SCHURTER, INC. |
| FAU 031.3573 | 61935 | SCHURTER, INC. |
Technical Data | NSN 5920-01-181-2673
| Characteristic | Specifications |
|---|---|
| FUSE ACCOMMODATION QUANTITY | 1 |
| CURRENT CARRYING RATING IN AMPS | 6.3 |
| VOLTAGE IN VOLTS | 250.0 |
| FUSE TERMINAL TYPE ACCOMMODATED | FERRULE |
| CONTACT MATERIAL | COPPER ALLOY |
| CONTACT SURFACE TREATMENT | NICKEL PLATED |
| BODY STYLE | CLIP TYPE (D-TYPE) |
| OVERALL HEIGHT | 1.770 INCHES MINIMUM |
| OVERALL WIDTH | 0.490 INCHES NOMINAL |
| BODY LENGTH | 0.440 INCHES NOMINAL |
| BODY HEIGHT | 0.480 INCHES NOMINAL |
| ACCOMMODATED FUSE LENGTH | 0.788 INCHES MINIMUM AND 1.250 INCHES MAXIMUM |
| ACCOMMODATED FERRULE DIAMETER | 0.197 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| INTERRUPTION INDICATOR METHOD | VISUAL INDICATING |
| SPECIAL FEATURES | ITEM IS A FUSEHOLDER BODY ONLY FOR PRINTED CIRCUIT BOARD MOUNTING THAT WILL ACCEPT 1.250 IN. LG BY 0.250 IN. DIA FUSES OR 20.0 MILLIMETER LG BY 5.0 MILLIMETER DIA FUSES DEPENDING ON WHICH FUSE CARRIER IS ORDERED; IF USING A 1.250 IN. LG BY 0.250 IN. DIA FUSE ORDER PART NUMBER FEK031.1666 FOR THE APPROPRIATE FUSE CARRIER,COLOR-CODED GREY; IF USING A 20.0 MILLIMETER LG BY 5.0 MILLIMETER DIA FUSE ORDER PART NUMBER FEK031.1663 FOR THE APPROPRIATE FUSE CARRIER,COLOR-CODED BLACK |
| BODY MATERIAL | PLASTIC, PHENOLIC, MOULDED |
| FRAGILITY FACTOR | MODERATELY RUGGED |
| STORAGE TYPE | GENERAL PURPOSE WAREHOUSE |
