NSN 5920-01-269-8290
Part Details | FUSEHOLDER SUBASSEMBLY
5920-01-269-8290 The components of a fuseholder which together form the carrier to hold a fuse in position to provide electrical contact, but which in itself is not a complete functioning item and cannot be assigned a more definite item name.
Alternate Parts: 8533035, 85-33035, 0330, 0330, 5920-01-269-8290, 01-269-8290, 5920012698290, 012698290
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 22, 1987 | 01-269-8290 | 62213 ( FUSEHOLDER SUBASSEMBLY ) |
REFERENCE DRAWINGS & PICTURES

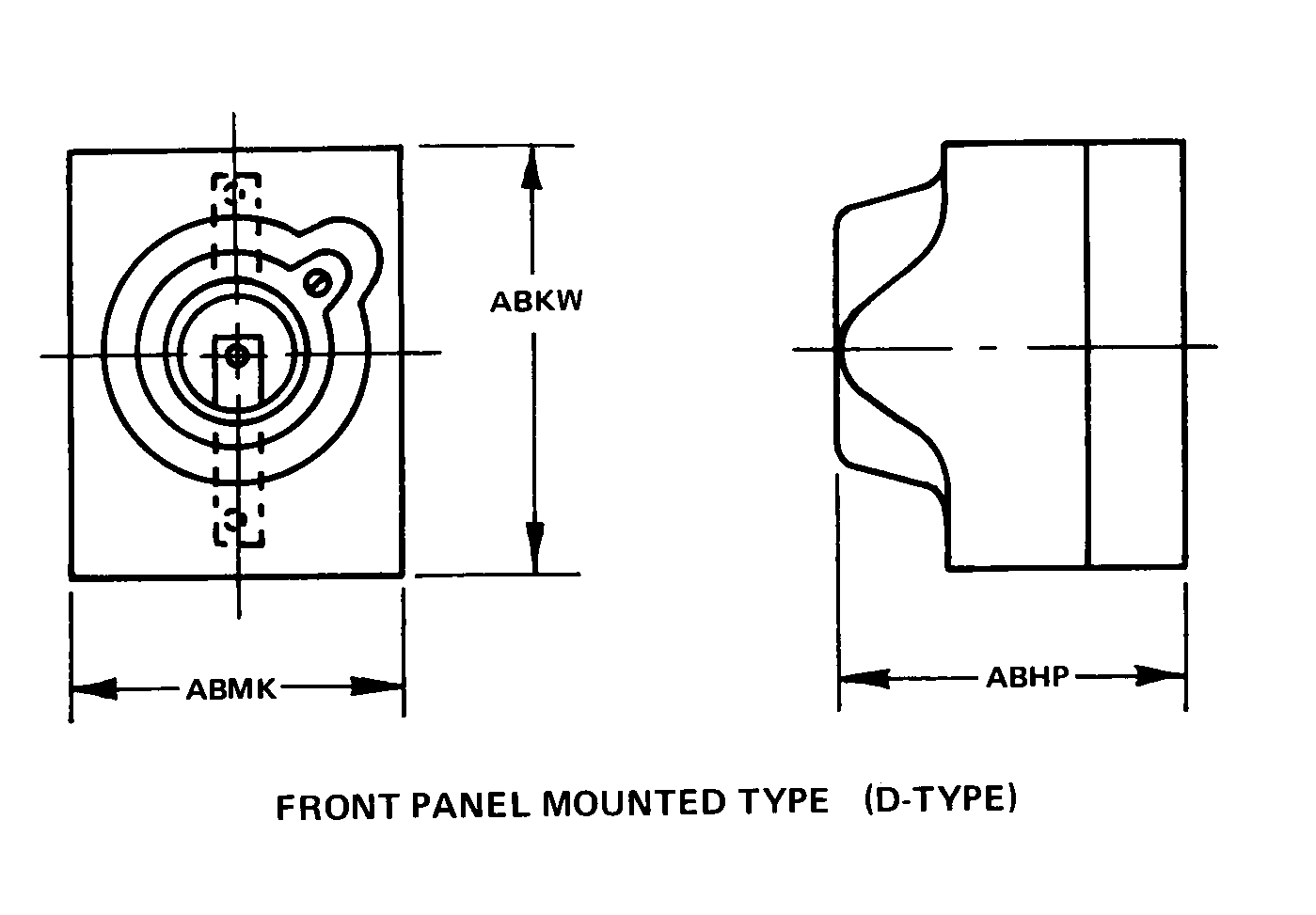

FRONT PANEL MOUNTED TYPE (D-TYPE)
Cross Reference | NSN 5920-01-269-8290
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 85-33035 | 30554 | DEPARTMENT OF DEFENSE PROJECTMANAGER-MOBILE ELECTRIC POWER |
| 0330 | 00779 | TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY |
| 0330 | 89020 | TYCO ELECTRONICS/AGASTAT RELAYS |
Technical Data | NSN 5920-01-269-8290
| Characteristic | Specifications |
|---|---|
| FUSE ACCOMMODATION QUANTITY | 1 |
| FUSE TERMINAL TYPE ACCOMMODATED | FERRULE |
| CONTACT MATERIAL | PLASTIC, PHENOLIC, MOULDED |
| BODY STYLE | FRONT PANEL MOUNTED TYPE (D-TYPE) |
| OVERALL LENGTH | 0.560 INCHES NOMINAL |
| OVERALL HEIGHT | 1.480 INCHES MINIMUM AND 1.720 INCHES MAXIMUM |
| OVERALL WIDTH | 2.750 INCHES NOMINAL |
| ACCOMMODATED FUSE LENGTH | 2.750 INCHES NOMINAL |
| ACCOMMODATED FERRULE DIAMETER | 0.250 INCHES NOMINAL |
