NSN 5920-01-287-7541
Part Details | CARTRIDGE FUSE
5920-01-287-7541 A fuse in which the element is inclosed in a cylindrical body. The element may be renewable. The terminals may be of varying types. It may contain a visual indication that the fusible element is severed, and may also provide an audible alarm through auxiliary circuitry. For noncylindrical items, see FUSE, INCLOSED LINK.
Alternate Parts: 4206513, 5SB2 11, 5SB211, 5920-01-287-7541, 01-287-7541, 5920012877541, 012877541
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | OCT 27, 1988 | 01-287-7541 | 00248 ( FUSE, CARTRIDGE ) |
REFERENCE DRAWINGS & PICTURES

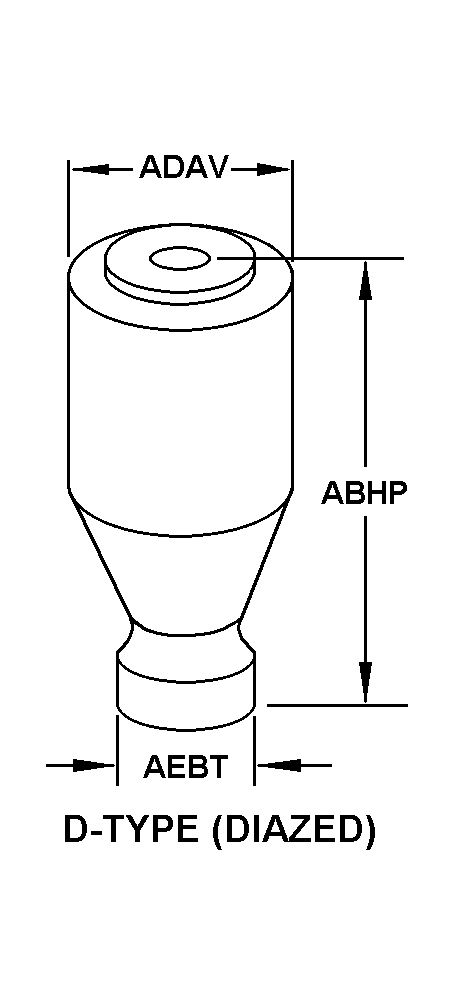

D-TYPE (DIAZED)
Cross Reference | NSN 5920-01-287-7541
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4206513 | 0SE35 | BOLL FILTER CORPORATIONDBA USE CAGE CODE 3EXK7 FOR |
| 5SB2 11 | 25088 | SIEMENS CORP |
| 5SB211 | 0ACF4 | SIEMENS ENERGY & AUTOMATION INC.DIV SIEMENS IND SERVICES SIEMENS |
Technical Data | NSN 5920-01-287-7541
| Characteristic | Specifications |
|---|---|
| BODY STYLE | D-TYPE (DIAZED) |
| OVERALL LENGTH | 50.0 MILLIMETERS NOMINAL |
| OVERALL DIAMETER | 22.0 MILLIMETERS NOMINAL |
| CONTINUOUS CURRENT RATING IN AMPS | 2.000 |
| CIRCUIT OVER-CURRENT INTERRUPTION TYPE | NORMAL INSTANTANEOUS |
| INTERRUPTION INDICATOR METHOD | OPAQUE BODY |
