NSN 5925-01-213-0722
Part Details | CIRCUIT BREAKER
5925-01-213-0722 A device with means other than fuses for automatically opening the circuit in which it is installed when the current varies from the predetermined value for which the device is set. May include provisions for manual operation. At least one set of contacts must be in series with the actuating element(s). A combination of semiconductor and passive devices may be used in lieu of contacts. For automatically operated items in which the actuating (tripping) element and contacts are not in series, see RELAY (as modified). For items which are operated both manually and automatically but the actuating elements and contact are not in series, see RELAY-SWITCH. Excludes CIRCUIT BREAKER BOX and magneto "breaker" assemblies. See also SWITCH (as modified); and CONTROLLER.
Alternate Parts: 2051111REC342F3752AM0, 205-111-1REC3-42F3-752-AM0, 89099316, 91538927, 5925-01-213-0722, 01-213-0722, 5925012130722, 012130722
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 22, 1985 | 01-213-0722 | 00136 ( CIRCUIT BREAKER ) |
REFERENCE DRAWINGS & PICTURES

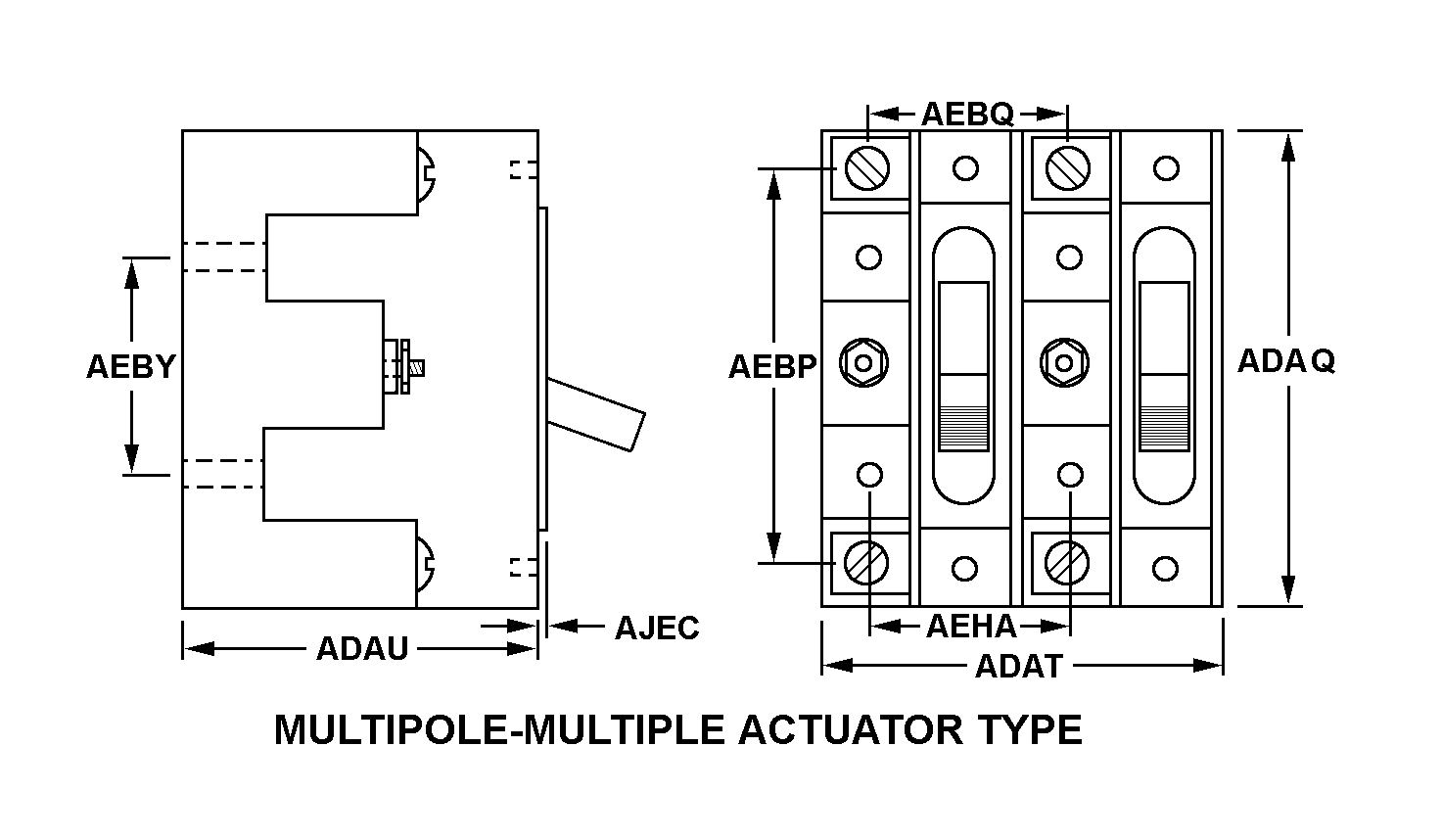

MULTIPOLE-MULTIPLE ACTUATOR TYPE
Cross Reference | NSN 5925-01-213-0722
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 205-111-1REC3-42F3-752-AM0 | 81541 | SENSATA TECHNOLOGIES MARYLAND, INC |
| 89099316 | F8224 | THALES AIR SYSTEMS SA |
| 91538927 | F6481 | THALES SA |
Technical Data | NSN 5925-01-213-0722
| Characteristic | Specifications |
|---|---|
| POLE QUANTITY | 3 |
| TERMINAL TYPE AND QUANTITY | 6 THREADED STUD |
| BODY STYLE | MULTIPOLE-MULTIPLE ACTUATOR TYPE |
| MOUNTING FACILITY TYPE AND QUANTITY | 6 UNTHREADED HOLE |
| BODY LENGTH | 2.490 INCHES MINIMUM |
| BODY WIDTH | 2.250 INCHES MAXIMUM |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.156 INCHES NOMINAL |
