NSN 5925-01-285-0361
Part Details | CIRCUIT BREAKER
5925-01-285-0361 A device with means other than fuses for automatically opening the circuit in which it is installed when the current varies from the predetermined value for which the device is set. May include provisions for manual operation. At least one set of contacts must be in series with the actuating element(s). A combination of semiconductor and passive devices may be used in lieu of contacts. For automatically operated items in which the actuating (tripping) element and contacts are not in series, see RELAY (as modified). For items which are operated both manually and automatically but the actuating elements and contact are not in series, see RELAY-SWITCH. Excludes CIRCUIT BREAKER BOX and magneto "breaker" assemblies. See also SWITCH (as modified); and CONTROLLER.
Alternate Parts: 3VE10152JU00, 3VE1015-2JU00, 3RV19011E3RV10211EA10, 3RV1901-1E/3RV1021-1EA10, MSP10JA11, MSP10JA11, 5925-01-285-0361, 01-285-0361, 5925012850361, 012850361
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | SEP 04, 1988 | 01-285-0361 | 00136 ( CIRCUIT BREAKER ) |
REFERENCE DRAWINGS & PICTURES

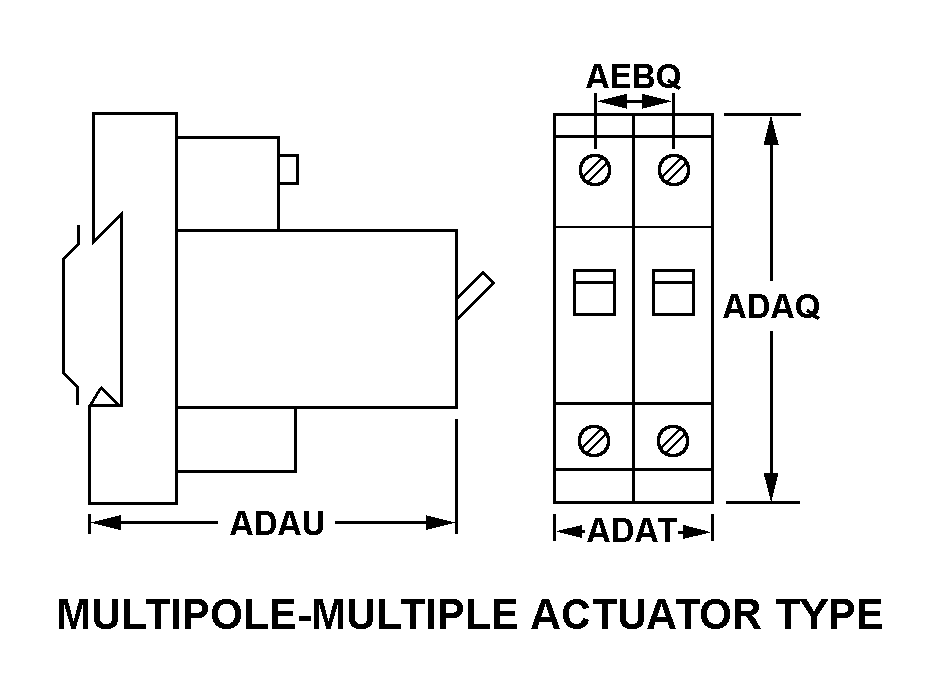

MULTIPOLE-MULTIPLE ACTUATOR TYPE
Cross Reference | NSN 5925-01-285-0361
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3VE1015-2JU00 | 0ACF4 | SIEMENS ENERGY & AUTOMATION INC.DIV SIEMENS IND SERVICES SIEMENS |
| 3RV1901-1E/3RV1021-1EA10 | 66842 | SIEMENS ENERGY AND AUTOMATION INCITE CIRCUIT PROTECTION DIV |
| MSP10JA11 | 66842 | SIEMENS ENERGY AND AUTOMATION INCITE CIRCUIT PROTECTION DIV |
| MSP10JA11 | 66482 | T R C CIRCUITS INC |
Technical Data | NSN 5925-01-285-0361
| Characteristic | Specifications |
|---|---|
| POLE QUANTITY | 3 |
| TERMINAL TYPE AND QUANTITY | 6 COMPRESSION |
| RESET METHOD | MANUAL |
| BODY STYLE | MULTIPOLE-MULTIPLE ACTUATOR TYPE |
| CASE MATERIAL | PLASTIC |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE |
| MAIN CONTACT TRIPPING MECHANISM TYPE | TRIP FREE |
| BODY LENGTH | 82.0 MILLIMETERS NOMINAL |
| BODY WIDTH | 54.0 MILLIMETERS NOMINAL |
| BODY HEIGHT | 82.5 MILLIMETERS NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO WIDTH | 13.5 MILLIMETERS NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 4.0 MILLIMETERS NOMINAL |
| MANUAL ACTUATOR TYPE AND QUANTITY | 2 PUSH BUTTON |
| ACTUATOR FUNCTION | TRIP-RESET |
| ACTUATOR POSITION DESIGNATION | BETWEEN POLE ONE AND TWO AND BETWEEN POLE TWO AND THREE |
| INCLOSURE PROTECTION TYPE FOR WHICH DESIGNED | GENERAL PURPOSE |
| STORAGE TYPE | E ANY ACCEPTABLE |
| SPECIAL HANDLING FEATURE | MAGNETIC |
| FRAGILITY FACTOR | MODERATELY RUGGED |
