NSN 5925-01-297-9849

Part Details | CIRCUIT BREAKER

5925-01-297-9849 A device with means other than fuses for automatically opening the circuit in which it is installed when the current varies from the predetermined value for which the device is set. May include provisions for manual operation. At least one set of contacts must be in series with the actuating element(s). A combination of semiconductor and passive devices may be used in lieu of contacts. For automatically operated items in which the actuating (tripping) element and contacts are not in series, see RELAY (as modified). For items which are operated both manually and automatically but the actuating elements and contact are not in series, see RELAY-SWITCH. Excludes CIRCUIT BREAKER BOX and magneto "breaker" assemblies. See also SWITCH (as modified); and CONTROLLER.

Alternate Parts: FAL12040, FAL12040, 5925-01-297-9849, 01-297-9849, 5925012979849, 012979849

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59APR 08, 198901-297-984900136 ( CIRCUIT BREAKER )
REFERENCE DRAWINGS & PICTURES

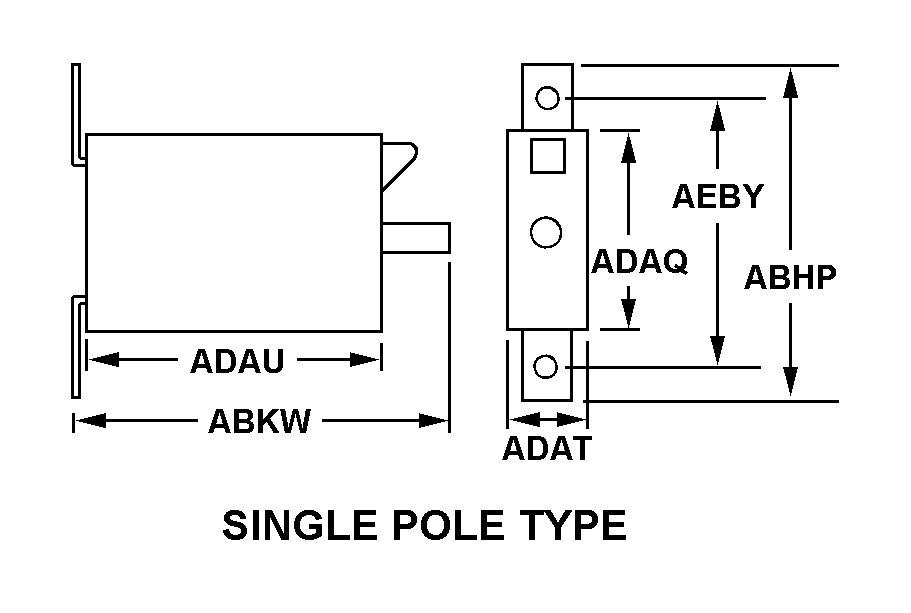

SINGLE POLE TYPE

Cross Reference | NSN 5925-01-297-9849
Part Number Cage Code Manufacturer
FAL1204056365SCHNEIDER ELECTRIC USA, INC.DBA SCHNEIDER ELECTRIC
FAL1204056302SQUARE D COCEDAR RAPIDS MFG PLANT
Technical Data | NSN 5925-01-297-9849
Characteristic Specifications
POLE QUANTITY1
RESET METHOD MANUAL
BODY STYLE SINGLE POLE TYPE
CASE MATERIAL PLASTIC
MAIN CONTACT TRIPPING MECHANISM TYPE NONTRIP FREE
OVERALL LENGTH6.000 INCHES NOMINAL
OVERALL HEIGHT4.125 INCHES NOMINAL
BODY WIDTH1.500 INCHES NOMINAL
BODY HEIGHT3.156 INCHES NOMINAL
DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH5.125 INCHES NOMINAL
MANUAL ACTUATOR TYPE AND QUANTITY1 PUSH BUTTON
ACTUATOR FUNCTION TRIP-RESET
ACTUATOR POSITION DESIGNATION AT POLE ONE
AUXILIARY SWITCH FUNCTION AND QUANTITY1 CONTROL
SWITCH LOCATION AND POSITION DESIGNATION EXTERNAL AT POLE ONE
INCLOSURE PROTECTION TYPE FOR WHICH DESIGNED WATERTIGHT
