NSN 5935-00-088-8577
Part Details | ELECTRICAL PLUG CONNECTOR
5935-00-088-8577 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: SW32SAJ1MFX, SW32S-AJ-1MFX, SW32SAJ1JFT7, SW32S-AJ-1JFT7, 579R009H21, SRD32PSAJ, SRD32PS833AJ, SRD32PS-833AJ, 5935-00-088-8577, 00-088-8577, 5935000888577, 000888577
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 29, 1967 | 00-088-8577 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

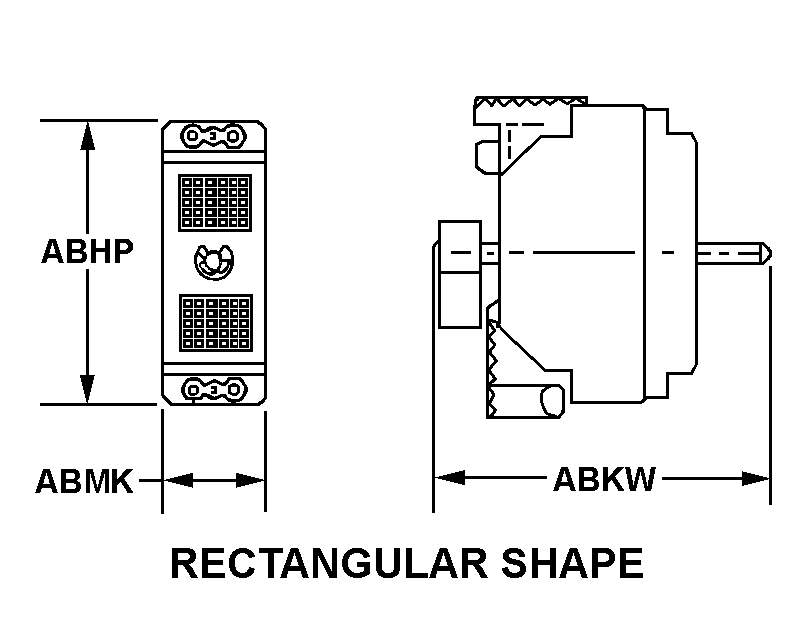

RECTANGULAR SHAPE
Cross Reference | NSN 5935-00-088-8577
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SW32S-AJ-1MFX | 91663 | ARMEL ELECTRONICS INC |
| SW32S-AJ-1JFT7 | 91663 | ARMEL ELECTRONICS INC |
| 579R009H21 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NORTHROP GRUMMAN SYSTEMS |
| SRD32PSAJ | 81312 | WINCHESTER ELECTRONICS CORPORATIONDBA KINGS ELECTRONICS |
| SRD32PS-833AJ | 81312 | WINCHESTER ELECTRONICS CORPORATIONDBA KINGS ELECTRONICS |
Technical Data | NSN 5935-00-088-8577
| Characteristic | Specifications |
|---|---|
| BODY STYLE | RECTANGULAR SHAPE |
| OVERALL LENGTH | 0.600 INCHES NOMINAL |
| OVERALL HEIGHT | 1.000 INCHES NOMINAL |
| OVERALL WIDTH | 0.600 INCHES NOMINAL |
| COLOR | NATURAL |
| CONNECTOR LOCKING METHOD | JACKSCREW |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.120 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 40 |
| THREAD DIRECTION | RIGHT-HAND |
| NOMINAL THREAD LENGTH | 0.218 INCHES |
| SHELL MATERIAL | METAL |
| POLARIZATION METHOD | JACKSCREW |
| MATING END QUANTITY | 1 |
| FEATURES PROVIDED | PRE-TINNED TERMINAL |
| SPECIAL FEATURES | GUIDE PINS LOCATED IN CONTACT POSITIONS A AND J |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| PRECIOUS MATERIAL | GOLD AND SILVER |
| PRECIOUS MATERIAL AND WEIGHT | 0.030 GOLD GRAINS, TROY AND 0.030 SILVER GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD AND C0NTACT SURFACES SILVER |
