Part Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-089-1447 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: 7124W, 7124W, 5935-00-089-1447, 00-089-1447, 5935000891447, 000891447
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1961 | 00-089-1447 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

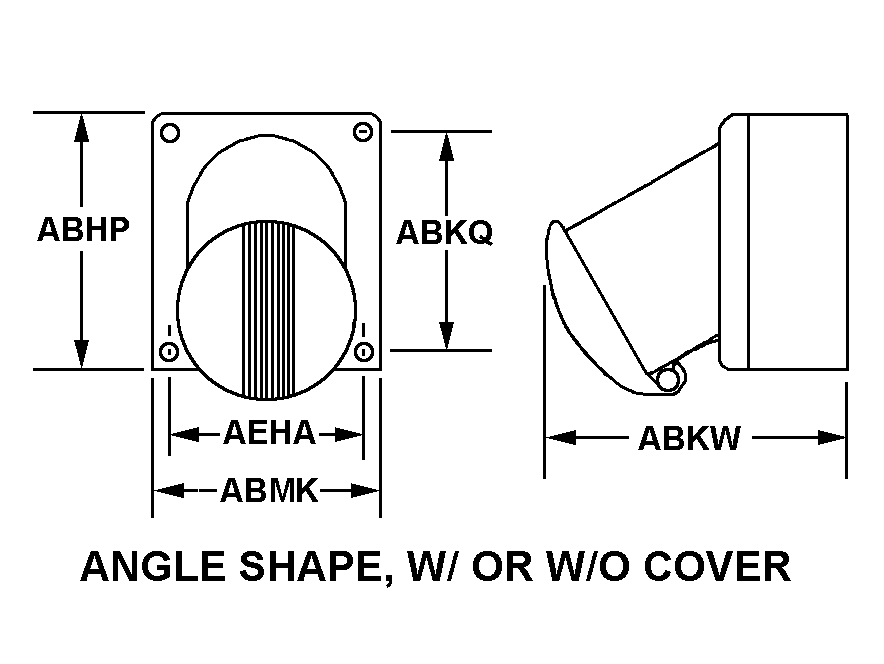

ANGLE SHAPE, W/ OR W/O COVER
Cross Reference | NSN 5935-00-089-1447
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7124W | 78011 | MIDLAND-ROSS CORPRUSSELLSTOLL DIV |
| 7124W | 56501 | THOMAS & BETTS CORPORATION |
Technical Data | NSN 5935-00-089-1447
| Characteristic | Specifications |
|---|---|
| BODY STYLE | ANGLE SHAPE, W/ OR W/O COVER |
| OVERALL LENGTH | 8.500 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 7.688 INCHES NOMINAL |
| OVERALL HEIGHT | 8.750 INCHES NOMINAL |
| OVERALL WIDTH | 4.812 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 3.812 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 4.000 INCHES NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.343 INCHES NOMINAL |
| SHELL TYPE | HOOD, TOP OPENING |
| SHELL MATERIAL | IRON |
| SHELL SURFACE TREATMENT | ENAMEL |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | TT-E-529 FED SPEC SINGLE TREATMENT RESPONSE |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 0.0 |
| MATING END QUANTITY | 1 |
| ENVIRONMENTAL PROTECTION | MOISTURE RESISTANT |
