NSN 5935-00-089-1566
Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-089-1566 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 5935000891566, 97097, 12000037, 1200-0037, 12000037, 1200-0037, 5935-00-089-1566, 00-089-1566, 5935000891566, 000891566
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 23, 1967 | 00-089-1566 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
TV TUBE MOUNT

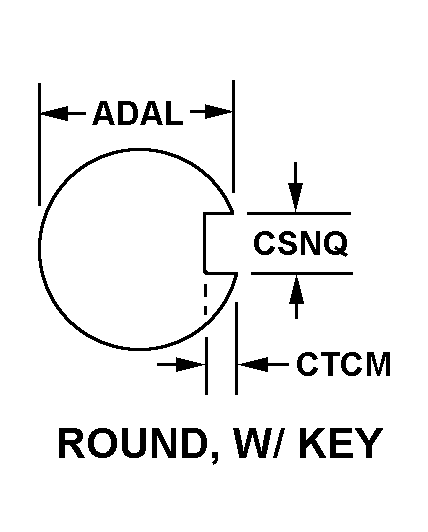

ROUND, W/KEY
DIHEPTAL
Cross Reference | NSN 5935-00-089-1566
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5935000891566 | A00AM | E.C.A ETABLISSEMENT CENTRALDESAPPROVISIONNEMENTS DES FORCES |
| 97097 | 72825 | EBY GROUP, LLC, THEDBA EBY COMPANY |
| 1200-0037 | 28480 | HEWLETT-PACKARD COMPANYDBA HP |
| 1200-0037 | 1LQK8 | KEYSIGHT TECHNOLOGIES, INC. |
Technical Data | NSN 5935-00-089-1566
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | DIHEPTAL |
| ACCOMMODATED CONTACT QUANTITY | 14 |
| CONTACT MATERIAL | BRASS |
| CONTACT SURFACE TREATMENT | CADMIUM |
| BODY STYLE | TV TUBE MOUNT |
| OVERALL HEIGHT | 0.734 INCHES NOMINAL |
| OVERALL DIAMETER | 2.219 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 14 WIRE LEAD |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING HOLE STYLE | ROUND, W/KEY |
| BODY MOUNTING HOLE ACCOMMODATION DIAMETER | 0.780 INCHES NOMINAL |
| POLARIZATION TYPE | CENTER KEY HOLE |
| SPECIFIC EQUIPMENT ACCOMMODATED | ELECTRON TUBE |
| FABRICATION METHOD | MOLDED |
