NSN 5935-00-089-3482
Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-089-3482 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 8000AG22, 8000AG2-2, 20884831, 2088483-1, 5L571200103, 5L5712-001-03, 5LV571200103, 5LV5712-001-03, 20884831, 2088483-1, L20884831, L2088483-1, L20884831, L2088483-1, 8000AG22, 8000AG2-2, 5935-00-089-3482, 00-089-3482, 5935000893482, 000893482
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1961 | 00-089-3482 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES

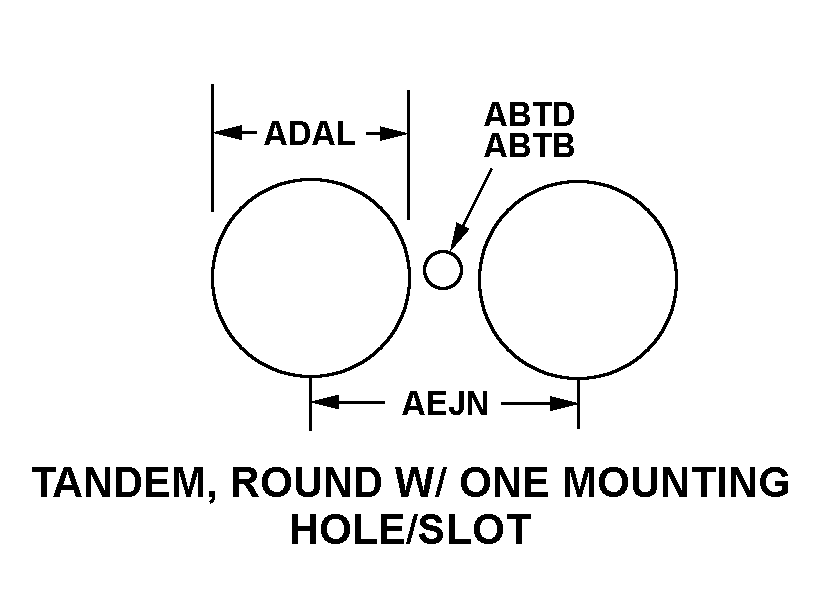

TANDEM, ROUND W/ONE MOUNTING HOLE/SLOT
IN LINE
Cross Reference | NSN 5935-00-089-3482
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8000AG2-2 | 91506 | AUGAT INC |
| 2088483-1 | 55901 | DARE ELECTRONICS, INC. |
| 5L5712-001-03 | D1901 | HENSOLDT SENSORS GMBHDIV SEPS |
| 5LV5712-001-03 | D1901 | HENSOLDT SENSORS GMBHDIV SEPS |
| 2088483-1 | 27914 | HONEYWELL INTERNATIONAL INCDBA HONEYWELL |
| L2088483-1 | 27914 | HONEYWELL INTERNATIONAL INCDBA HONEYWELL |
| L2088483-1 | 06845 | RAYTHEON COMPANYDBA RAYTHEON |
| 8000AG2-2 | 00779 | TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY |
Technical Data | NSN 5935-00-089-3482
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | IN LINE |
| ACCOMMODATED CONTACT QUANTITY | 2 |
| CONTACT MATERIAL | COPPER ALLOY |
| CONTACT SURFACE TREATMENT | G0000 ANY ACCEPTABLE |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 2 SOLDER STUD |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | SADDLE |
| MOUNTING HOLE STYLE | TANDEM, ROUND W/ONE MOUNTING HOLE/SLOT |
| MOUNTING HOLE DIAMETER | 0.093 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION DIAMETER | 0.234 INCHES NOMINAL |
| FEATURES PROVIDED | COMPONENT RETAINING DEVICE |
| SPECIFIC EQUIPMENT ACCOMMODATED | CRYSTAL |
| FABRICATION METHOD | MOLDED |
| PRECIOUS MATERIAL | SILVER |
| PRECIOUS MATERIAL AND WEIGHT | 0.010 SILVER GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES SILVER |
