NSN 5935-00-089-3583
Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-089-3583 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 9058, C34593, C3459-3, C34593, C3459-3, C34593, C3459-3, 5935-00-089-3583, 00-089-3583, 5935000893583, 000893583
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1960 | 00-089-3583 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
TOP OR BOTTOM MOUNT W/MOLDED SADDLE
ROUND, W/TWO MOUNTING HOLES

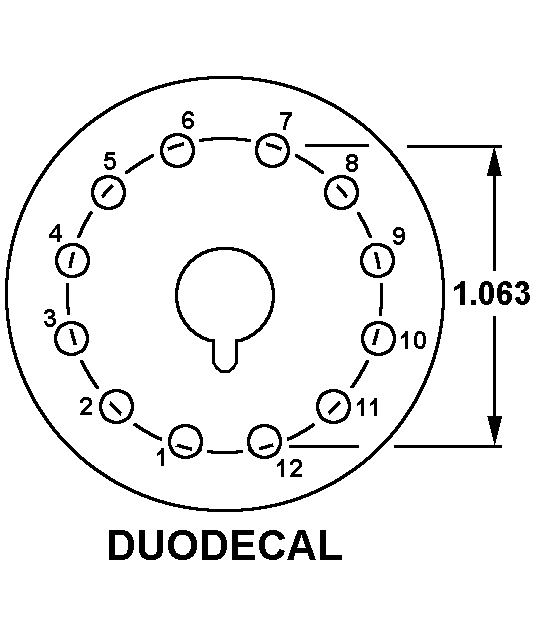

DUODECAL
Cross Reference | NSN 5935-00-089-3583
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9058 | 00629 | EBY SALES CO INC OF NEW YORK |
| C3459-3 | 14936 | GENERAL SEMICONDUCTOR INC |
| C3459-3 | 15280 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV ES DEFENSIVE SYSTEMS DIVISION |
| C3459-3 | 26916 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV MULTIPLE |
Technical Data | NSN 5935-00-089-3583
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | DUODECAL |
| ACCOMMODATED CONTACT QUANTITY | 12 |
| CONTACT MATERIAL | COPPER |
| CONTACT SURFACE TREATMENT | CADMIUM |
| BODY STYLE | TOP OR BOTTOM MOUNT W/MOLDED SADDLE |
| OVERALL LENGTH | 2.187 INCHES NOMINAL |
| OVERALL HEIGHT | 0.875 INCHES NOMINAL |
| OVERALL WIDTH | 1.484 INCHES NOMINAL |
| PROJECTION LENGTH ABOVE MOUNTING SURFACE | 0.094 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 12 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | SADDLE |
| MOUNTING HOLE STYLE | ROUND, W/TWO MOUNTING HOLES |
| MOUNTING HOLE DIAMETER | 0.133 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION DIAMETER | 1.484 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.875 INCHES NOMINAL |
| POLARIZATION TYPE | CENTER KEY HOLE |
