NSN 5935-00-089-8049
Part Details | ELECTRICAL CONNECTOR CABLE CLAMP
5935-00-089-8049 A clamp specifically designed to hold an electrical cable firmly in a connector. Must include provisions for attachment to an electrical connector. Excludes ADAPTER (1), CABLE TO CONNECTOR.
Alternate Parts: 1889961, 188996-1, SMC6195191, SM-C-619519-1, SMC6195191, SMC619519-1, 5935-00-089-8049, 00-089-8049, 5935000898049, 000898049
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 25, 1967 | 00-089-8049 | 23010 ( CLAMP, CABLE, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

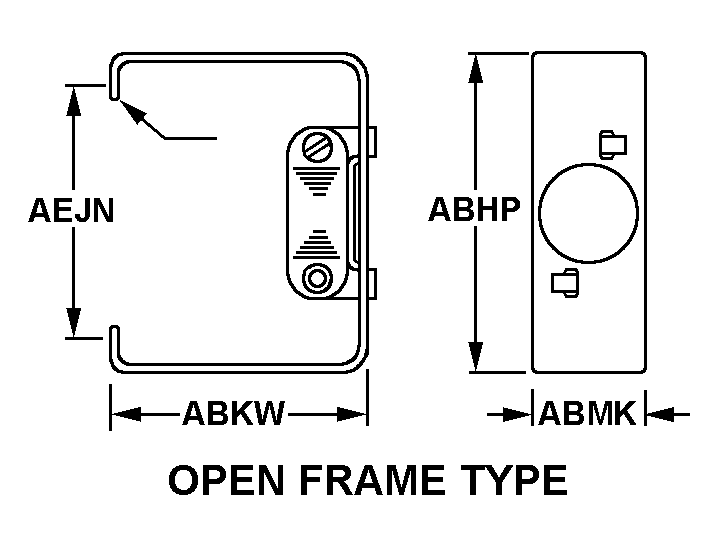

OPEN FRAME TYPE
Cross Reference | NSN 5935-00-089-8049
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 188996-1 | 37695 | RAYTHEON COMPANYDBA RAYTHEON |
| SM-C-619519-1 | 21530 | SPENCER INDUSTRIES INC |
| SMC619519-1 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
Technical Data | NSN 5935-00-089-8049
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | OPEN FRAME TYPE |
| OVERALL LENGTH | 2.000 INCHES NOMINAL |
| OVERALL HEIGHT | 0.625 INCHES NOMINAL |
| OVERALL WIDTH | 0.344 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.734 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.125 INCHES NOMINAL |
