NSN 5935-00-089-8053
Part Details | ELECTRICAL CONNECTOR SHELL
5935-00-089-8053 The outside case of one or more connectors into which the dielectric materials and contacts are assembled. Also includes shell for ADAPTER, CONNECTOR. See also SHIELD, ELECTRICAL CONNECTOR and COVER, ELECTRICAL CONNECTOR.
Alternate Parts: 188982801, 188982-801, SMB619514, 5935-00-089-8053, 00-089-8053, 5935000898053, 000898053
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 25, 1967 | 00-089-8053 | 61026 ( SHELL, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

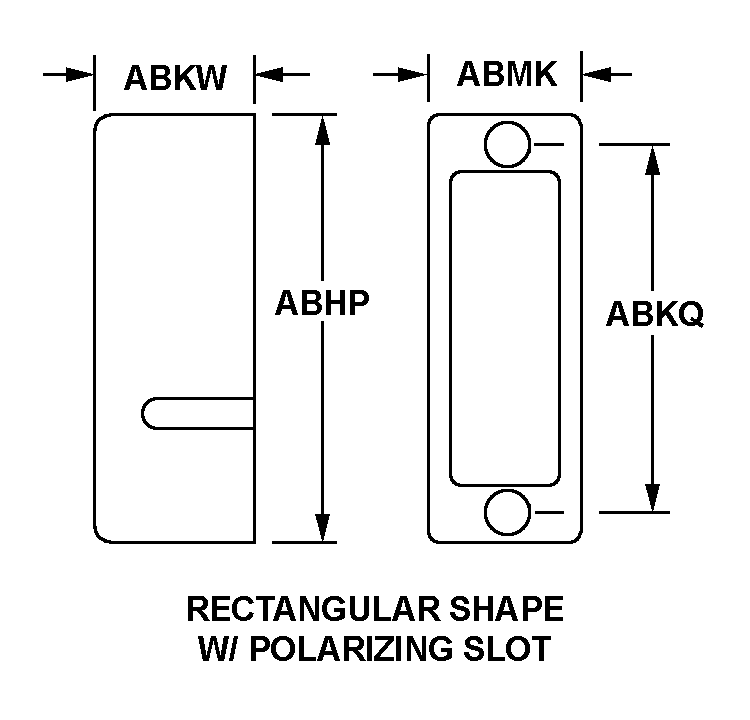

RECTANGULAR SHAPE W/POLARIZING SLOT
Cross Reference | NSN 5935-00-089-8053
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 188982-801 | 37695 | RAYTHEON COMPANYDBA RAYTHEON |
| SMB619514 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
Technical Data | NSN 5935-00-089-8053
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | RECTANGULAR SHAPE W/POLARIZING SLOT |
| OVERALL LENGTH | 1.218 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 0.906 INCHES NOMINAL |
| OVERALL HEIGHT | 0.810 INCHES NOMINAL |
| OVERALL WIDTH | 0.390 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | PASSIVATE |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.124 INCHES MINIMUM AND 0.126 INCHES MAXIMUM |
| SEAL TYPE | GROMMET |
