NSN 5935-00-089-8054
Part Details | ELECTRICAL CONNECTOR BACKSHELL
5935-00-089-8054 An item specifically designed to be placed around that portion of a CONNECTOR, RECEPTABLE, ELECTRICAL or CONNECTOR, PLUG, ELECTRICAL which contains the facilities for attaching wires or cables. It may be designed to provide the necessary accomodations between an electrical cable clamping device and an electrical connector shell, or it may include the clamping device. It may be used for shielding against electrical interference, mechanical injury, or physical damage due to environmental conditions.
Alternate Parts: 1889811, 188981-1, SMC619516, 5935-00-089-8054, 00-089-8054, 5935000898054, 000898054
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 25, 1967 | 00-089-8054 | 67169 ( BACKSHELL, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

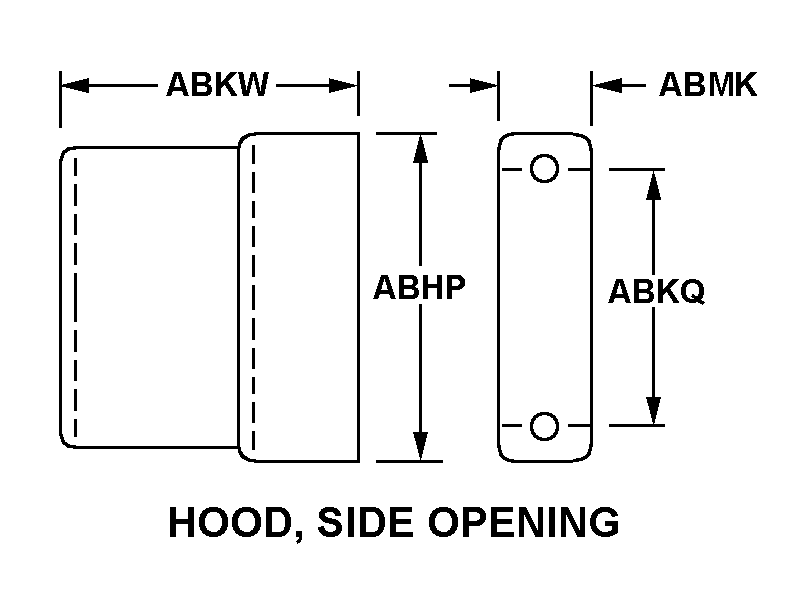

HOOD, SIDE OPENING
Cross Reference | NSN 5935-00-089-8054
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 188981-1 | 37695 | RAYTHEON COMPANYDBA RAYTHEON |
| SMC619516 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
Technical Data | NSN 5935-00-089-8054
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | HOOD, SIDE OPENING |
| OVERALL LENGTH | 1.812 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.500 INCHES NOMINAL |
| OVERALL HEIGHT | 0.910 INCHES NOMINAL |
| OVERALL WIDTH | 0.436 INCHES MINIMUM AND 0.442 INCHES MAXIMUM |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | ANODIZE |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.187 INCHES NOMINAL |
