NSN 5935-00-090-7182
Part Details | ELECTRICAL CONNECTOR RETAINING PLATE
5935-00-090-7182 A flat metallic item varied in shape with an opening(s) to accommodate an electrical connector(s). It must have facilities for mounting. Used to position an electrical connector. See also PLATE, MOUNTING (as modified). Excludes PLATE, WALL, ELECTRICAL and ESCUTCHEON PLATE.
Alternate Parts: MILC28748, MIL-C-28748, MS181991, MS18199-1, 5935-00-090-7182, 00-090-7182, 5935000907182, 000907182
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | NOV 29, 1972 | 00-090-7182 | 21538 ( PLATE, RETAINING, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

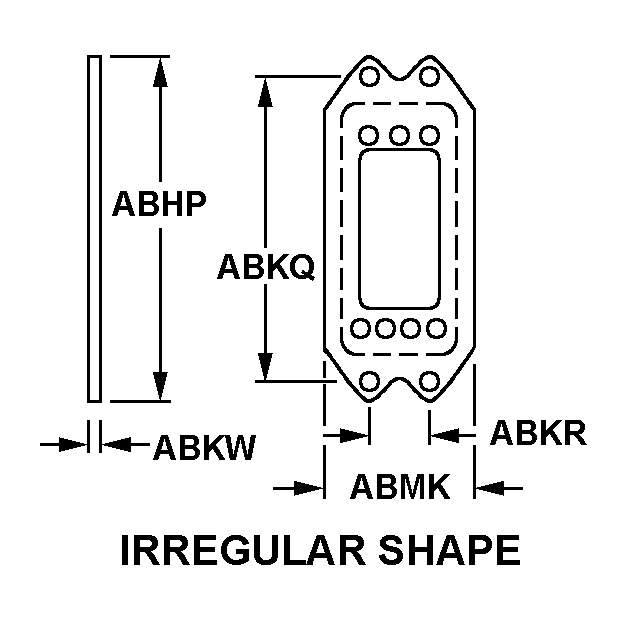

IRREGULAR SHAPE
Cross Reference | NSN 5935-00-090-7182
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MIL-C-28748 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MS18199-1 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
Technical Data | NSN 5935-00-090-7182
| Characteristic | Specifications |
|---|---|
| MOUNTING FACILITY TYPE AND QUANTITY | 10 UNTHREADED HOLE |
| MATERIAL | ALUMINUM ALLOY |
| STYLE DESIGNATOR | IRREGULAR SHAPE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 2.698 INCHES MINIMUM AND 2.708 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 0.463 INCHES MINIMUM AND 0.473 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.024 INCHES MINIMUM AND 0.056 INCHES MAXIMUM |
| OVERALL WIDTH | 1.312 INCHES MINIMUM AND 1.344 INCHES MAXIMUM |
| SURFACE TREATMENT | ANODIZE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL&A&8625 TYPE I OR TYPE II MIL SPEC SINGLE TREATMENT RESPONSE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.123 INCHES MINIMUM AND 0.128 INCHES MAXIMUM |
| SIZE DESIGNATION | 34 |
| TEST DATA DOCUMENT | 81349-MIL-C-28748 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.). |
| SPECIFICATION/STANDARD DATA | 96906-MS18199 GOVERNMENT STANDARD |
