NSN 5935-00-090-7317
Part Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-090-7317 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: M1540GS2BLK, 16763360003, 16763360-003, 5935-00-090-7317, 00-090-7317, 5935000907317, 000907317
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | NOV 29, 1972 | 00-090-7317 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

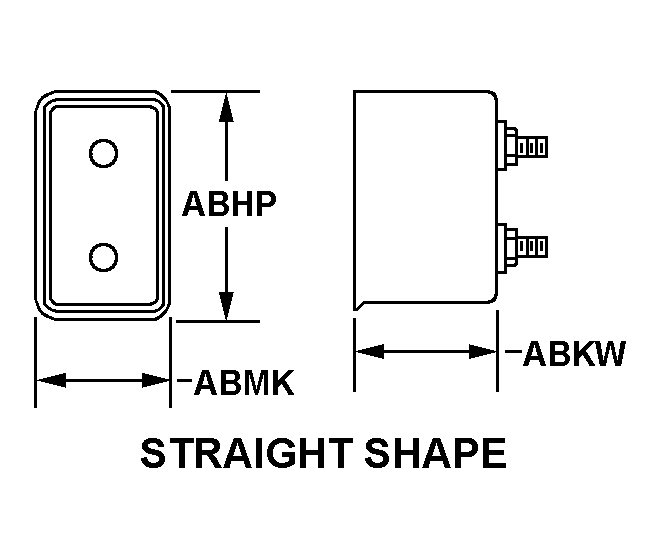

STRAIGHT SHAPE
Cross Reference | NSN 5935-00-090-7317
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M1540GS2BLK | 73586 | CIRCLE F INDUSTRIES |
| 16763360-003 | 28009 | SYPRIS ELECTRONICS, LLCDIV SYPRIS ELECTRONICS, LLC - |
Technical Data | NSN 5935-00-090-7317
| Characteristic | Specifications |
|---|---|
| BODY STYLE | STRAIGHT SHAPE |
| OVERALL LENGTH | 1.060 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.188 INCHES NOMINAL |
| OVERALL WIDTH | 1.060 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | FRICTION |
| POLARIZATION METHOD | CONTACT |
| MATING END QUANTITY | 1 |
