NSN 5935-00-092-0303
Part Details | ELECTRICAL PLUG CONNECTOR
5935-00-092-0303 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: QX32SM102, 5935-00-092-0303, 00-092-0303, 5935000920303, 000920303
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 03, 1972 | 00-092-0303 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

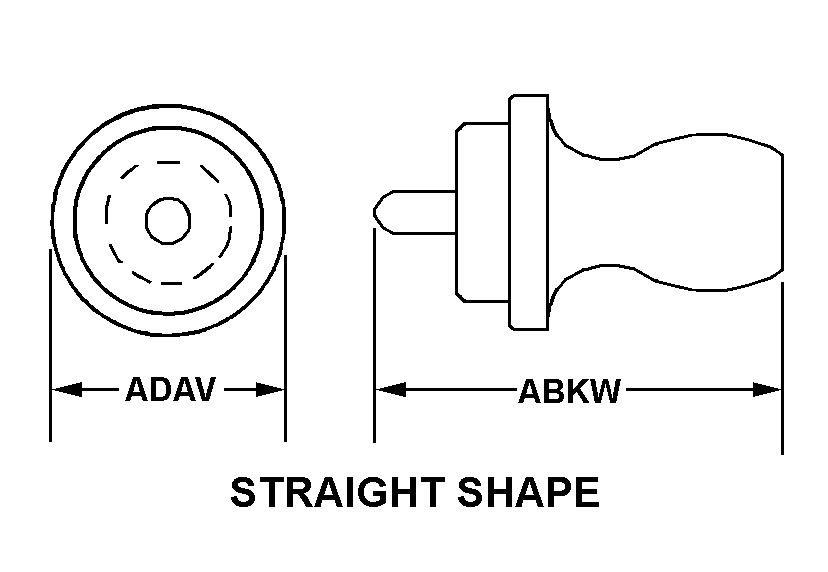

STRAIGHT SHAPE
Cross Reference | NSN 5935-00-092-0303
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| QX32SM102 | 91637 | VISHAY DALE ELECTRONICS, LLCDBA VISHAY INTERTECHNOLOGY |
Technical Data | NSN 5935-00-092-0303
| Characteristic | Specifications |
|---|---|
| BODY STYLE | STRAIGHT SHAPE |
| OVERALL HEIGHT | 1.188 INCHES NOMINAL |
| OVERALL DIAMETER | 2.500 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | SCREW |
| THREADED DEVICE TYPE | BACK SHELL AND COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | UN AND UNF |
| NOMINAL THREAD SIZE | 2.250 INCHES AND 0.190 INCHES |
| THREAD CLASS | A2A$$A2B |
| THREAD QUANTITY PER INCH | A16$$A32 |
| THREAD DIRECTION | RIGHT-HAND AND RIGHT-HAND |
| POLARIZATION METHOD | GUIDE PIN/SOCKET |
| MATING END QUANTITY | 1 |
| ENVIRONMENTAL PROTECTION | SALT WATER RESISTANT |
| PRECIOUS MATERIAL | GOLD AND SILVER |
| PRECIOUS MATERIAL AND WEIGHT | 0.032 GOLD GRAINS, TROY AND 0.032 SILVER GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD AND CONTACT SURFACES SILVER |
