NSN 5935-00-094-0353
Part Details | ELECTRICAL CONNECTOR BACKSHELL
5935-00-094-0353 An item specifically designed to be placed around that portion of a CONNECTOR, RECEPTABLE, ELECTRICAL or CONNECTOR, PLUG, ELECTRICAL which contains the facilities for attaching wires or cables. It may be designed to provide the necessary accomodations between an electrical cable clamping device and an electrical connector shell, or it may include the clamping device. It may be used for shielding against electrical interference, mechanical injury, or physical damage due to environmental conditions.
Alternate Parts: 12510339, 1251-0339, 12510339, 1251-0339, 2550KH9, 25-50KH9, 5935-00-094-0353, 00-094-0353, 5935000940353, 000940353
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 06, 1972 | 00-094-0353 | 67169 ( BACKSHELL, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

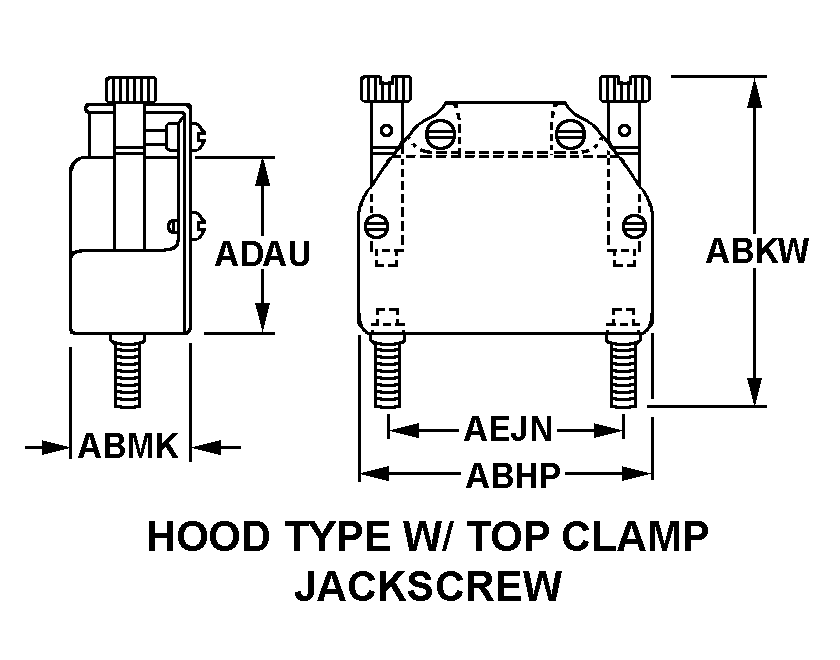

HOOD TYPE W/TOP CLAMP JACKSCREW
Cross Reference | NSN 5935-00-094-0353
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1251-0339 | 28480 | HEWLETT-PACKARD COMPANYDBA HP |
| 1251-0339 | 1LQK8 | KEYSIGHT TECHNOLOGIES, INC. |
| 25-50KH9 | 95238 | WINCHESTER ELECTRONICS CORPORATIONDBA CONTINENTAL CONNECTOR |
Technical Data | NSN 5935-00-094-0353
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | HOOD TYPE W/TOP CLAMP JACKSCREW |
| OVERALL LENGTH | 2.680 INCHES NOMINAL |
| OVERALL WIDTH | 0.880 INCHES NOMINAL |
| BODY HEIGHT | 1.500 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 2.282 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | ANODIZE |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.093 INCHES NOMINAL |
| CABLE OPENING QUANTITY | 1 |
| CABLE OPENING LENGTH | 1.090 INCHES NOMINAL |
| CABLE OPENING WIDTH | 0.720 INCHES NOMINAL |
| FURNISHED ITEMS | JACKSCREW KNOB |
| SIZE DESIGNATION | 50 |
