NSN 5935-00-096-1984
Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-096-1984 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 78S8TW01251000, 78S8TW0125-1000, 78S8TW01251000, 78S8TW0125-1000, 4150423001, 415-0423-001, 5935-00-096-1984, 00-096-1984, 5935000961984, 000961984
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 08, 1972 | 00-096-1984 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES

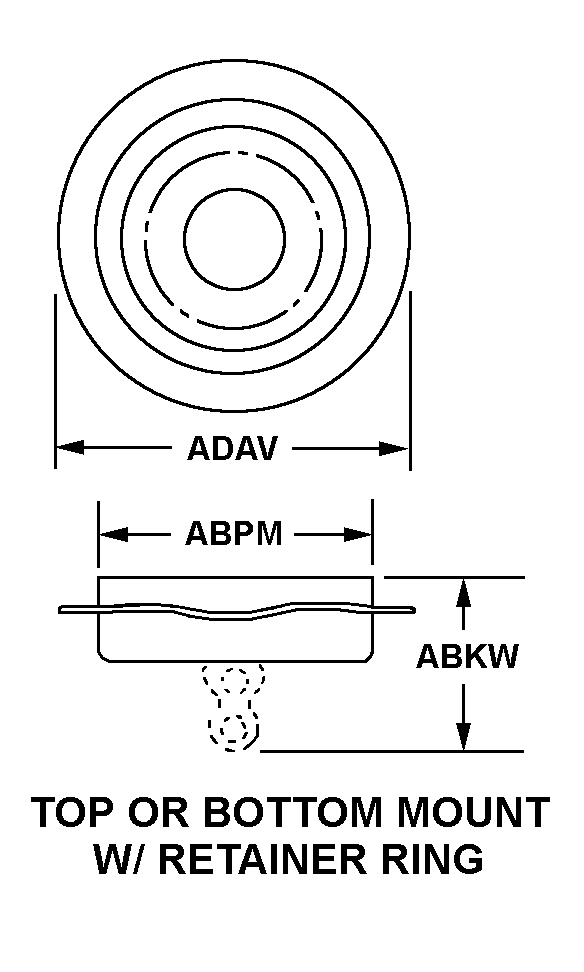

TOP OR BOTTOM MOUNT W/RETAINER RING
ROUND, W/KEY
OCTAL .687 INCH
Cross Reference | NSN 5935-00-096-1984
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 78S8TW0125-1000 | 77820 | AMPHENOL CORPORATIONDBA AMPHENOL AEROSPACE OPERATIONS |
| 78S8TW0125-1000 | 02660 | AMPHENOL CORPSPECTRA-STRIP/ITD |
| 415-0423-001 | 94756 | BOEING COMPANY, THEDBA BOEING |
Technical Data | NSN 5935-00-096-1984
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | OCTAL .687 INCH |
| ACCOMMODATED CONTACT QUANTITY | 8 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 7.5 |
| CONTACT MATERIAL | COPPER ALLOY |
| CONTACT SURFACE TREATMENT | TIN |
| BODY STYLE | TOP OR BOTTOM MOUNT W/RETAINER RING |
| OVERALL HEIGHT | 0.770 INCHES NOMINAL |
| BODY DIAMETER | 1.150 INCHES NOMINAL |
| OVERALL DIAMETER | 1.250 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 8 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | PRINTED CIRCUIT |
| MOUNTING METHOD | RETAINER RING |
| MOUNTING HOLE STYLE | ROUND, W/KEY |
| BODY MOUNTING HOLE ACCOMMODATION DIAMETER | 1.172 INCHES NOMINAL |
| MOUNTING KEYWAY WIDTH | 0.187 INCHES NOMINAL |
| MOUNTING KEYWAY LENGTH | 0.093 INCHES NOMINAL |
| POLARIZATION TYPE | CENTER KEY HOLE |
| FEATURES PROVIDED | COMPONENT RETAINING DEVICE |
