NSN 5935-00-097-7703
Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-097-7703 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 0N089095, 5935-00-097-7703, 00-097-7703, 5935000977703, 000977703
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 22, 1968 | 00-097-7703 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES

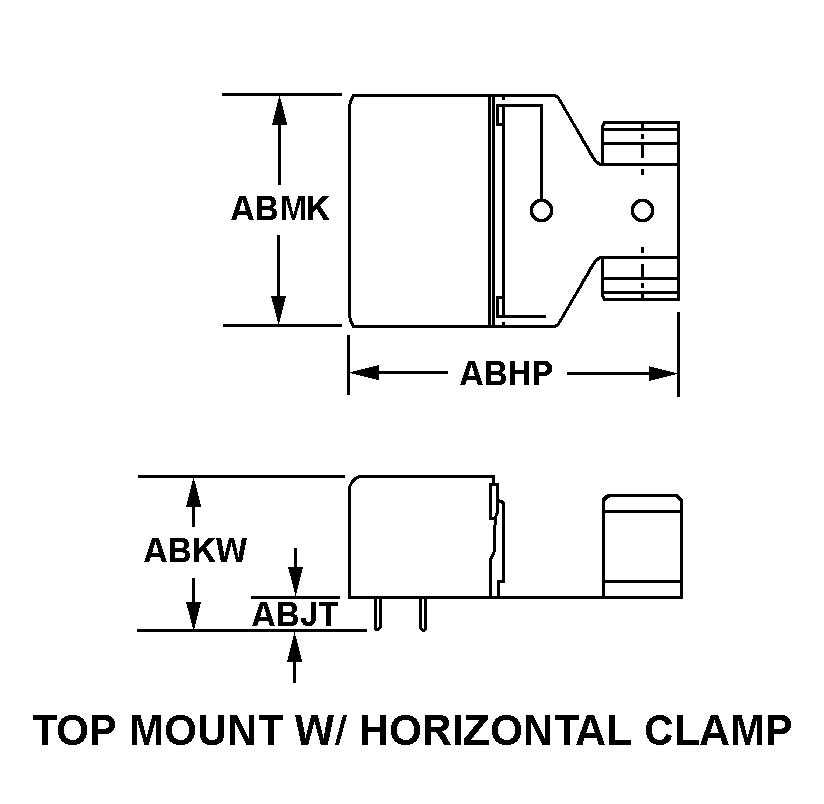

TOP MOUNT W/HORIZONTAL CLAMP
IN LINE
Cross Reference | NSN 5935-00-097-7703
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0N089095 | 98230 | NATIONAL SECURITY AGENCY |
Technical Data | NSN 5935-00-097-7703
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | IN LINE |
| ACCOMMODATED CONTACT QUANTITY | 2 |
| BODY STYLE | TOP MOUNT W/HORIZONTAL CLAMP |
| OVERALL LENGTH | 1.200 INCHES NOMINAL |
| TERMINAL LENGTH | 0.300 INCHES NOMINAL |
| OVERALL HEIGHT | 0.700 INCHES NOMINAL |
| OVERALL WIDTH | 0.556 INCHES NOMINAL |
| BODY MATERIAL | BERYLLIUM COPPER |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
