NSN 5935-00-099-0488
Part Details | TIP PLUG
5935-00-099-0488 A banana or pin type termination applied to the end of a single electrical conductor and designed to be inserted in a jack or binding post. May be insulated or uninsulated. Excludes TIP, TEST PROD and PLUG, TELEPHONE.
Alternate Parts: 9073, CD9073, 5935-00-099-0488, 00-099-0488, 5935000990488, 000990488
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 13, 1972 | 00-099-0488 | 15046 ( PLUG, TIP ) |
REFERENCE DRAWINGS & PICTURES

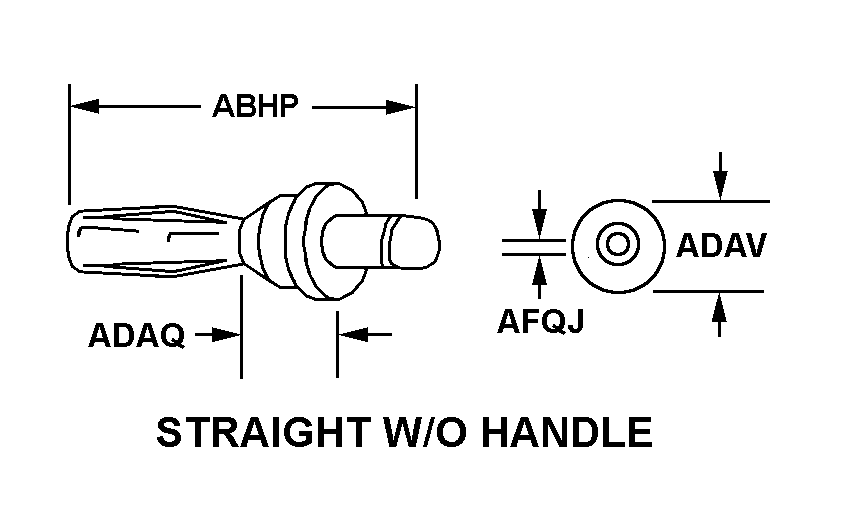

STRAIGHT W/O HANDLE
Cross Reference | NSN 5935-00-099-0488
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9073 | 04435 | JETTRON PRODUCTS INC |
| CD9073 | 04435 | JETTRON PRODUCTS INC |
Technical Data | NSN 5935-00-099-0488
| Characteristic | Specifications |
|---|---|
| BODY STYLE | STRAIGHT W/O HANDLE |
| OVERALL LENGTH | 1.060 INCHES NOMINAL |
| OVERALL DIAMETER | 0.310 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED STUD |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
| IDENTIFICATION CODE COLOR | NATURAL |
| TERMINAL TYPE | THREADED STUD |
| PRECIOUS MATERIAL | SILVER |
| PRECIOUS MATERIAL AND LOCATION | FINGER SURFACE SILVER |
