NSN 5935-00-100-5092
Part Details | ELECTRICAL PLUG CONNECTOR
5935-00-100-5092 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: 26430224P(363), 26-4302-24P(363), 26430224P(363), 26-4302-24P(363), G38372414, G383724-14, G2108052, G210805-2, 5935-00-100-5092, 00-100-5092, 5935001005092, 001005092
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 29, 1968 | 00-100-5092 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

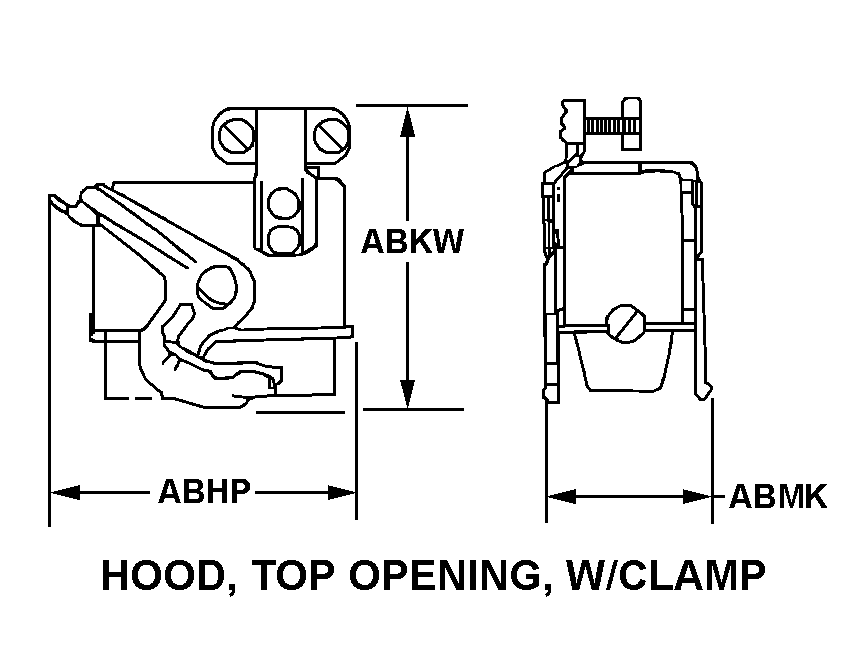

HOOD, TOP OPENING, W/CLAMP
Cross Reference | NSN 5935-00-100-5092
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 26-4302-24P(363) | 77820 | AMPHENOL CORPORATIONDBA AMPHENOL AEROSPACE OPERATIONS |
| 26-4302-24P(363) | 02660 | AMPHENOL CORPSPECTRA-STRIP/ITD |
| G383724-14 | 01714 | LUCENT TECHNOLOGIES INCADVANCED TECHNOLOGY SYSTEMS |
| G210805-2 | 01714 | LUCENT TECHNOLOGIES INCADVANCED TECHNOLOGY SYSTEMS |
Technical Data | NSN 5935-00-100-5092
| Characteristic | Specifications |
|---|---|
| BODY STYLE | HOOD, TOP OPENING, W/CLAMP |
| OVERALL LENGTH | 3.220 INCHES NOMINAL |
| OVERALL HEIGHT | 2.371 INCHES NOMINAL |
| OVERALL WIDTH | 1.250 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | LATCH |
| CONNECTOR CABLE STRAIN RELIEF METHOD | CABLE CLAMP |
| CABLE ENTRANCE DIAMETER | 0.625 INCHES MAXIMUM |
| SHELL TYPE | HOOD, TOP OPENING |
| SHELL MATERIAL | COPPER ALLOY |
| SHELL SURFACE TREATMENT | NICKEL |
| POLARIZATION METHOD | MATING END |
| MATING END QUANTITY | 1 |
| ENVIRONMENTAL PROTECTION | SHOCK RESISTANT AND VIBRATION RESISTANT |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND WEIGHT | 0.024 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
