NSN 5935-00-102-7059
Part Details | ELECTRICAL PLUG CONNECTOR
5935-00-102-7059 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: G3596701, G359670-1, 373D645G06, G3596701, G359670-1, 5935-00-102-7059, 00-102-7059, 5935001027059, 001027059
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 31, 1968 | 00-102-7059 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

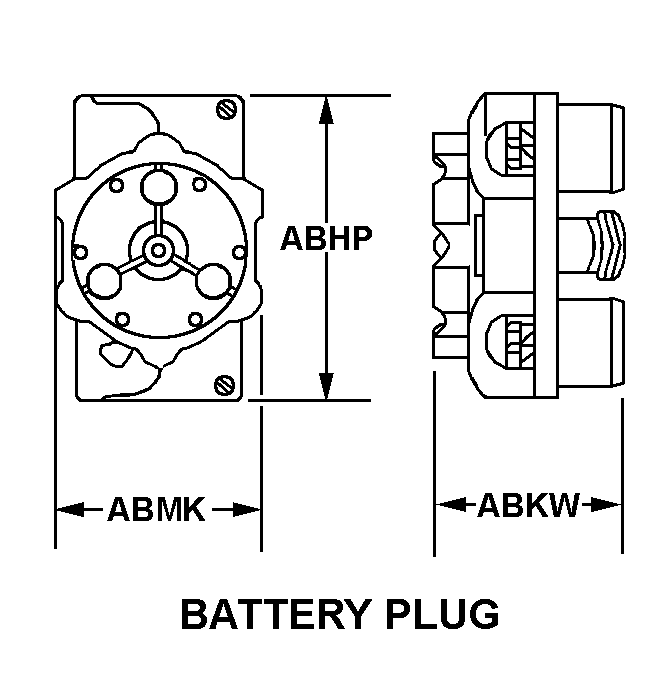

BATTERY PLUG
Cross Reference | NSN 5935-00-102-7059
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| G359670-1 | 64959 | AMERICAN TELEPHONE AND TELEGRAPH CO |
| 373D645G06 | 89946 | EATON CORPORATION |
| G359670-1 | 89946 | EATON CORPORATION |
Technical Data | NSN 5935-00-102-7059
| Characteristic | Specifications |
|---|---|
| BODY STYLE | BATTERY PLUG |
| OVERALL LENGTH | 4.063 INCHES NOMINAL |
| OVERALL HEIGHT | 3.937 INCHES NOMINAL |
| OVERALL WIDTH | 2.000 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 16 |
| THREAD DIRECTION | RIGHT-HAND |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | PLASTIC PHENOLIC |
| MATING END QUANTITY | 1 |
| PRECIOUS MATERIAL | SILVER |
| PRECIOUS MATERIAL AND WEIGHT | 0.015 SILVER GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES SILVER |
