NSN 5935-00-102-8242
Part Details | ELECTRICAL CONNECTOR SHELL
5935-00-102-8242 The outside case of one or more connectors into which the dielectric materials and contacts are assembled. Also includes shell for ADAPTER, CONNECTOR. See also SHIELD, ELECTRICAL CONNECTOR and COVER, ELECTRICAL CONNECTOR.
Alternate Parts: SMI11HR, SMI11HR, SMI11HR, 5935-00-102-8242, 00-102-8242, 5935001028242, 001028242
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 31, 1968 | 00-102-8242 | 61026 ( SHELL, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

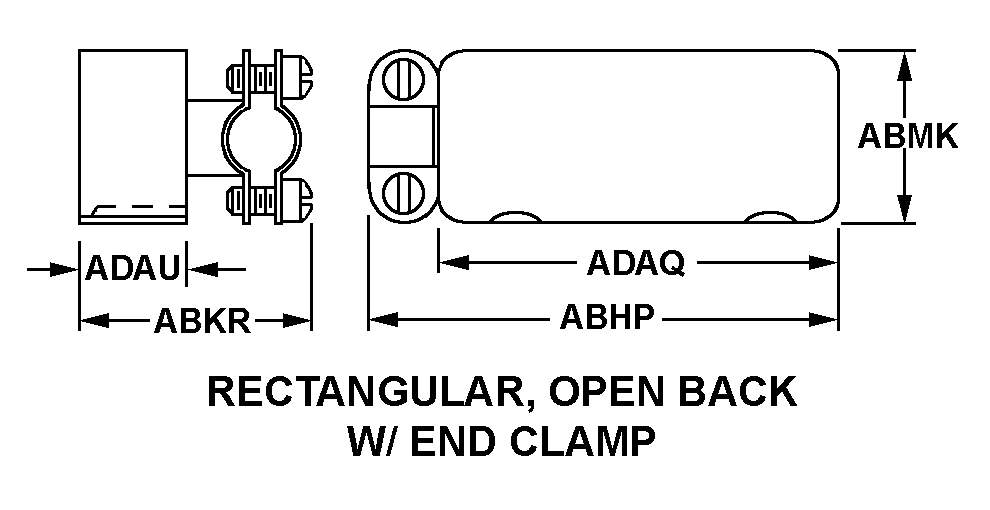

RECTANGULAR, OPEN BACK W/END CLAMP
Cross Reference | NSN 5935-00-102-8242
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SMI11HR | 24046 | TRANSITRON ELECTRONIC CORPHDQS |
| SMI11HR | 97954 | U S COMPONENTS INC |
| SMI11HR | 81312 | WINCHESTER ELECTRONICS CORPORATIONDBA KINGS ELECTRONICS |
Technical Data | NSN 5935-00-102-8242
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | RECTANGULAR, OPEN BACK W/END CLAMP |
| OVERALL LENGTH | 1.229 INCHES NOMINAL |
| OVERALL HEIGHT | 1.282 INCHES NOMINAL |
| OVERALL WIDTH | 1.157 INCHES NOMINAL |
| BODY LENGTH | 0.875 INCHES NOMINAL |
| BODY HEIGHT | 0.938 INCHES NOMINAL |
| MATERIAL | ALUMINUM |
| SURFACE TREATMENT | ANODIZE |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED HOLE AND 1 CLAMP ASSEMBLY |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.086 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 56 |
| THREAD DIRECTION | RIGHT-HAND |
| CABLE OPENING QUANTITY | 1 |
| CABLE OPENING LENGTH | 0.375 INCHES NOMINAL |
| CABLE OPENING WIDTH | 0.250 INCHES NOMINAL |
| SEAL TYPE | GROMMET |
| SIZE DESIGNATION | 11 |
