NSN 5935-00-103-1755
Part Details | ELECTRICAL CONNECTOR SHELL
5935-00-103-1755 The outside case of one or more connectors into which the dielectric materials and contacts are assembled. Also includes shell for ADAPTER, CONNECTOR. See also SHIELD, ELECTRICAL CONNECTOR and COVER, ELECTRICAL CONNECTOR.
Alternate Parts: 350375, 52022871, 5-202287-1, 2022871, 202287-1, 5935-00-103-1755, 00-103-1755, 5935001031755, 001031755
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 05, 1968 | 00-103-1755 | 61026 ( SHELL, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

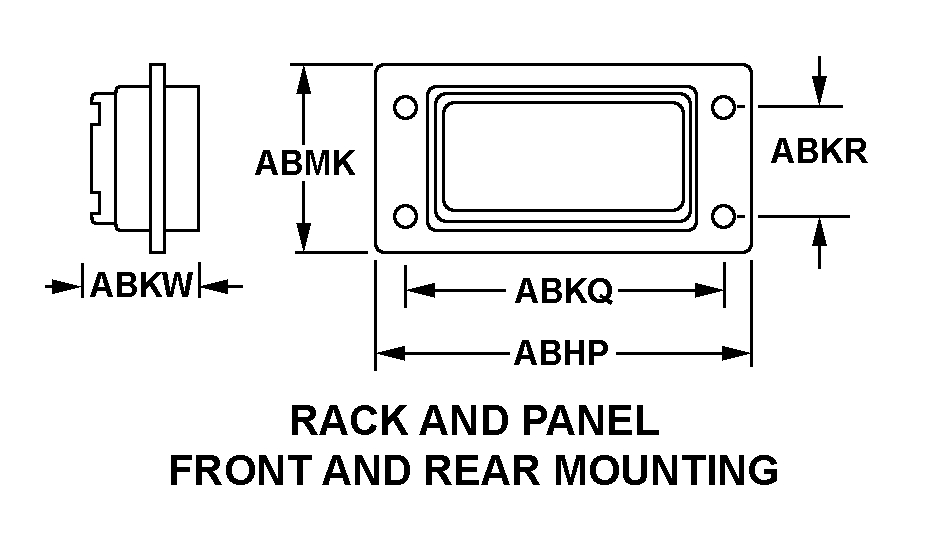

RACK AND PANEL FRONT AND REAR MOUNTING
Cross Reference | NSN 5935-00-103-1755
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 350375 | 80249 | BAE SYSTEMS INFORMATION ANDELECTRONIC SYSTEMS INTEGRATION INC. |
| 5-202287-1 | 00779 | TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY |
| 202287-1 | 00779 | TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY |
Technical Data | NSN 5935-00-103-1755
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | RACK AND PANEL FRONT AND REAR MOUNTING |
| OVERALL LENGTH | 3.156 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 2.821 INCHES MINIMUM AND 2.851 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 0.891 INCHES MINIMUM AND 0.921 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.494 INCHES MINIMUM AND 1.524 INCHES MAXIMUM |
| OVERALL WIDTH | 1.422 INCHES MAXIMUM |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | CADMIUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.120 INCHES NOMINAL |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL. FEATURES - FOR USE W/THREE MATING END CONNECTOR. |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| END ITEM IDENTIFICATION | F/A-18 HORNET, S-3B VIKING, F-14 TOMCAT, E-2C HAWKEYE AIRCRAFT. H-2 SEASPRITE, RH-53, CH-53A/D/E, H-3 SEA KING, H-46 SEA KNIGHT HELICOPTERS. |
