NSN 5935-00-103-4037
Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-103-4037 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 1935098, 19350-98, 78S8TM, 5935-00-103-4037, 00-103-4037, 5935001034037, 001034037
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 07, 1968 | 00-103-4037 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES

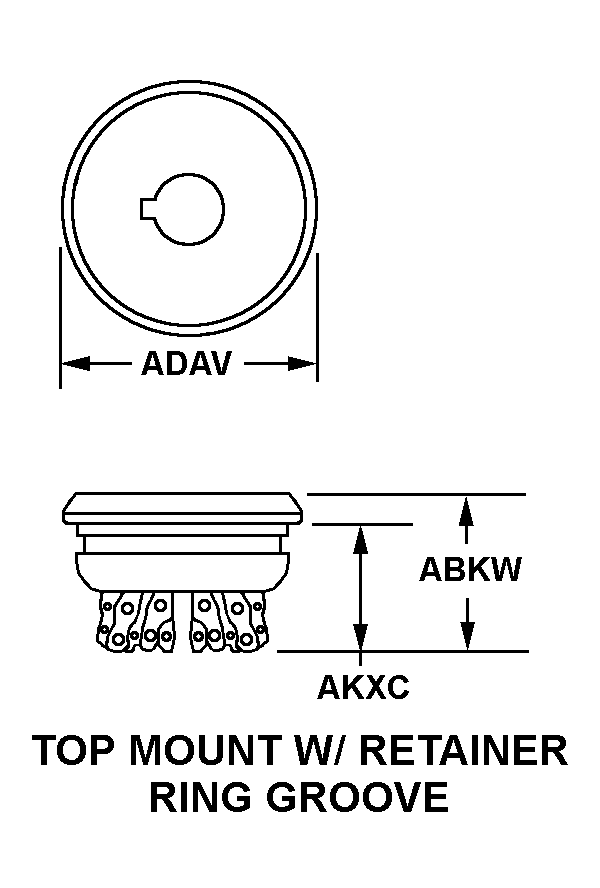

TOP MOUNT W/RETAINER RING GROOVE
ROUND, W/KEY
OCTAL .687 INCH
Cross Reference | NSN 5935-00-103-4037
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 19350-98 | 28569 | HICKOK INCORPORATED |
| 78S8TM | 88033 | STEWART-WARNER ALEMITE SALES CO INC |
Technical Data | NSN 5935-00-103-4037
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | OCTAL .687 INCH |
| ACCOMMODATED CONTACT QUANTITY | 8 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 3.0 |
| CONTACT MATERIAL | PHOSPHOR BRONZE |
| CONTACT SURFACE TREATMENT | G0000 ANY ACCEPTABLE |
| BODY STYLE | TOP MOUNT W/RETAINER RING GROOVE |
| OVERALL HEIGHT | 0.875 INCHES NOMINAL |
| OVERALL DIAMETER | 1.172 INCHES NOMINAL |
| PROJECTION LENGTH BELOW MOUNTING SURFACE | 0.385 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 8 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | RETAINER RING |
| MOUNTING HOLE STYLE | ROUND, W/KEY |
| BODY MOUNTING HOLE ACCOMMODATION DIAMETER | 1.172 INCHES NOMINAL |
| MOUNTING KEYWAY WIDTH | 0.187 INCHES NOMINAL |
| MOUNTING KEYWAY LENGTH | 0.093 INCHES NOMINAL |
| POLARIZATION TYPE | CONTACT POSITION |
| PRECIOUS MATERIAL | SILVER |
| PRECIOUS MATERIAL AND WEIGHT | 0.008 SILVER GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES SILVER |
