NSN 5935-00-103-7987
Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-103-7987 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 812817459011, 81281745901-1, 81281745901, 8128174590-1, 2107500000, 2107-5000-00, 314AG5D2R, 314AG5D2, 314AG5D, 2080003, 208-0003, 00SCZ61659, OOSSCZ61659, 12000426, 1200-0426, 9C82604F01, 982604F01, 9-82604F01, 1CN143S3T, 1CN-143-S3-T, 314AG5D2R, 5935-00-103-7987, 00-103-7987, 5935001037987, 001037987
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 12, 1968 | 00-103-7987 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES

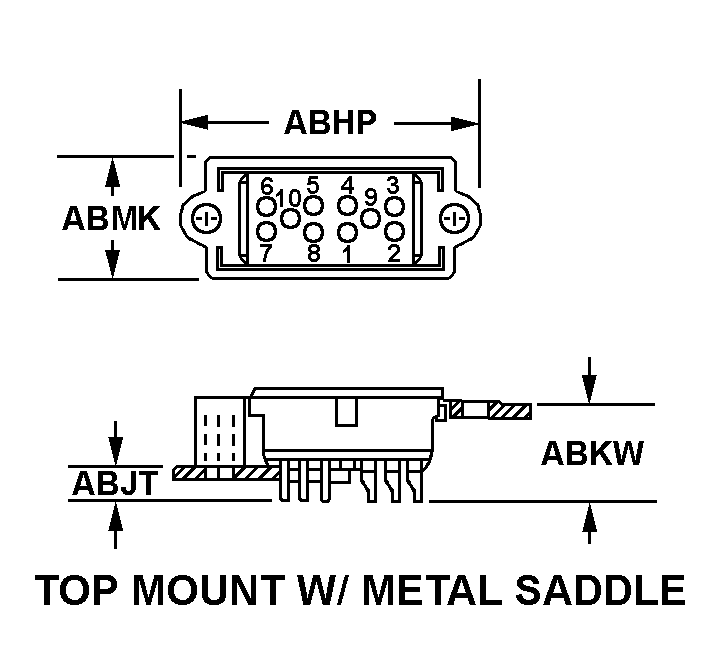

TOP MOUNT W/METAL SADDLE
TWO MOUNTING HOLES/SLOTS, IN-LINE
Cross Reference | NSN 5935-00-103-7987
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 81281745901-1 | 76381 | 3M COMPANYDBA 3M |
| 8128174590-1 | 76381 | 3M COMPANYDBA 3M |
| 2107-5000-00 | 14010 | ANADEX INC |
| 314AG5D2R | 91506 | AUGAT INC |
| 314AG5D2 | 91506 | AUGAT INC |
| 314AG5D | 91506 | AUGAT INC |
| 208-0003 | 54817 | AUTEK SYSTEMS CORP |
| 00SCZ61659 | 26280 | DEFENSE COMMUNICATIONS AGENCY |
| OOSSCZ61659 | 26280 | DEFENSE COMMUNICATIONS AGENCY |
| 1200-0426 | 28480 | HEWLETT-PACKARD COMPANYDBA HP |
| 9C82604F01 | 94990 | MOTOROLA INC.DBA INTEGRATED INFORMATION SYSTEMS |
| 9-82604F01 | 94990 | MOTOROLA INC.DBA INTEGRATED INFORMATION SYSTEMS |
| 1CN-143-S3-T | 06776 | ROBINSON NUGENT INC |
| 314AG5D2R | 00779 | TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY |
Technical Data | NSN 5935-00-103-7987
| Characteristic | Specifications |
|---|---|
| ACCOMMODATED CONTACT QUANTITY | 14 |
| CONTACT MATERIAL | PHOSPHOR BRONZE |
| CONTACT SURFACE TREATMENT | U0000 ANY ACCEPTABLE AND NICKEL |
| BODY STYLE | TOP MOUNT W/METAL SADDLE |
| OVERALL LENGTH | 0.900 INCHES NOMINAL |
| OVERALL HEIGHT | 0.500 INCHES NOMINAL |
| OVERALL WIDTH | 0.580 INCHES NOMINAL |
| BODY MATERIAL | GLASS |
| TERMINAL TYPE AND QUANTITY | 14 WIRE LEAD |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | SADDLE |
| MOUNTING HOLE STYLE | TWO MOUNTING HOLES/SLOTS, IN-LINE |
| MOUNTING HOLE DIAMETER | 0.093 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 0.900 INCHES NOMINAL |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND WEIGHT | 0.014 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
