NSN 5935-00-103-7988
Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-103-7988 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 1108513, 11085-13, 80581G51, 8058-1G51, 80581G51, 8058-1G51, 5935-00-103-7988, 00-103-7988, 5935001037988, 001037988
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 12, 1968 | 00-103-7988 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES

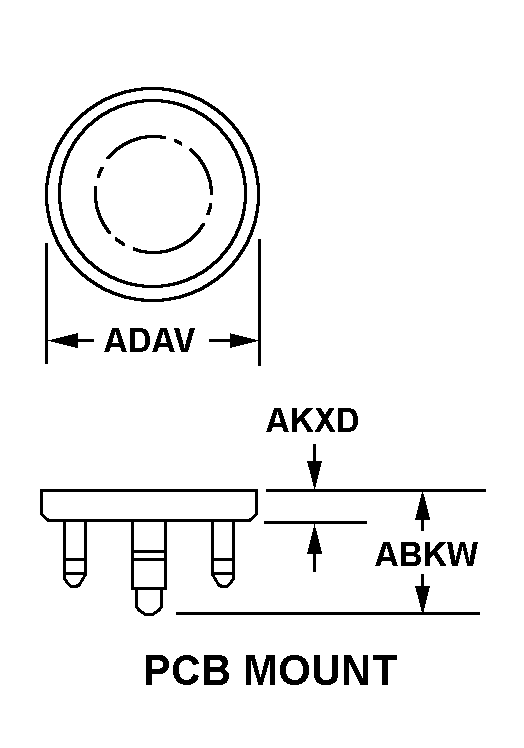

PCB MOUNT

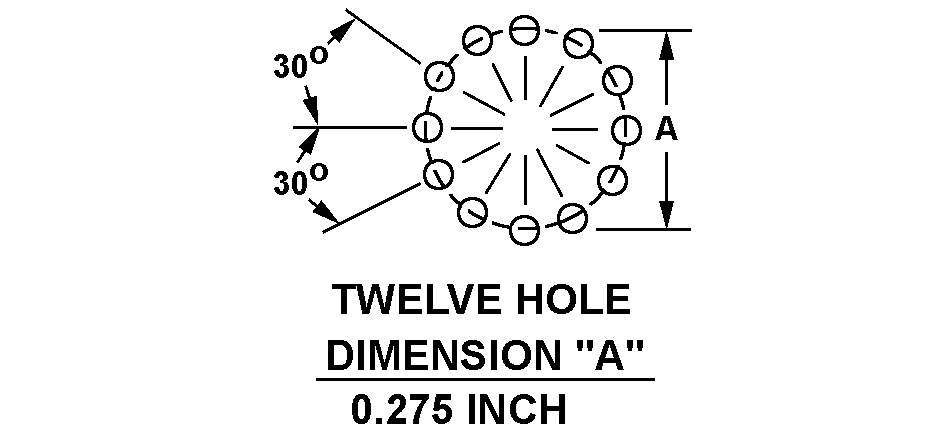

TWELVE HOLE DIMENSION "A" 0.275 INCH

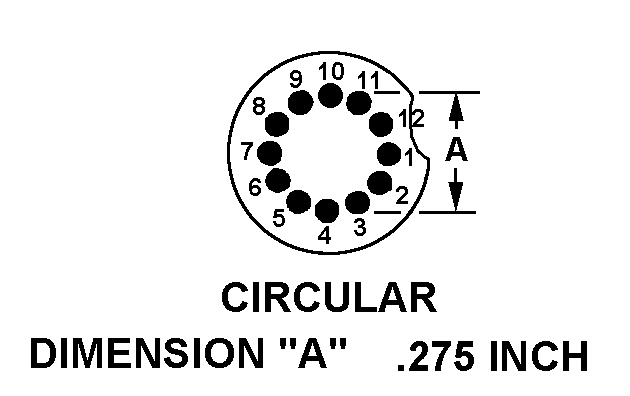

CIRCULAR
Cross Reference | NSN 5935-00-103-7988
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11085-13 | 06424 | ALLIANT TECHSYSTEMS OPERATIONS LLCDIV DEFENSE ELECTRONIC SYSTEMS |
| 8058-1G51 | 91506 | AUGAT INC |
| 8058-1G51 | 00779 | TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY |
Technical Data | NSN 5935-00-103-7988
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | CIRCULAR |
| ACCOMMODATED CONTACT QUANTITY | 12 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 1.0 |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | U0000 ANY ACCEPTABLE AND NICKEL |
| BODY STYLE | PCB MOUNT |
| OVERALL HEIGHT | 0.290 INCHES NOMINAL |
| OVERALL DIAMETER | 0.390 INCHES MINIMUM AND 0.410 INCHES MAXIMUM |
| PROJECTION LENGTH ABOVE MOUNTING SURFACE | 0.155 INCHES MINIMUM AND 0.175 INCHES MAXIMUM |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 12 PRINTED CIRCUIT |
| MOUNTING TYPE FOR WHICH DESIGNED | PRINTED CIRCUIT |
| MOUNTING METHOD | TERMINAL |
| PRINTED CIRCUIT BOARD HOLE ARRANGEMENT STYLE | TWELVE HOLE DIMENSION "A" 0.275 INCH |
| POLARIZATION TYPE | COLORED DOT |
| FABRICATION METHOD | LAMINATED |
| CONTACT RESISTANCE IN OHMS | 0.009 |
| CAPACITANCE IN PICOFARADS | B1.0$$B0.750 |
| TEMP RATING | -65.0 DEG CELSIUS AND 150.0 DEG CELSIUS |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND WEIGHT | 0.012 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
