NSN 5935-00-104-0813
Part Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-104-0813 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: M27267001, M2726/7-001, MILR27267, MILR2726-7, 5935-00-104-0813, 00-104-0813, 5935001040813, 001040813
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 23, 1968 | 00-104-0813 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

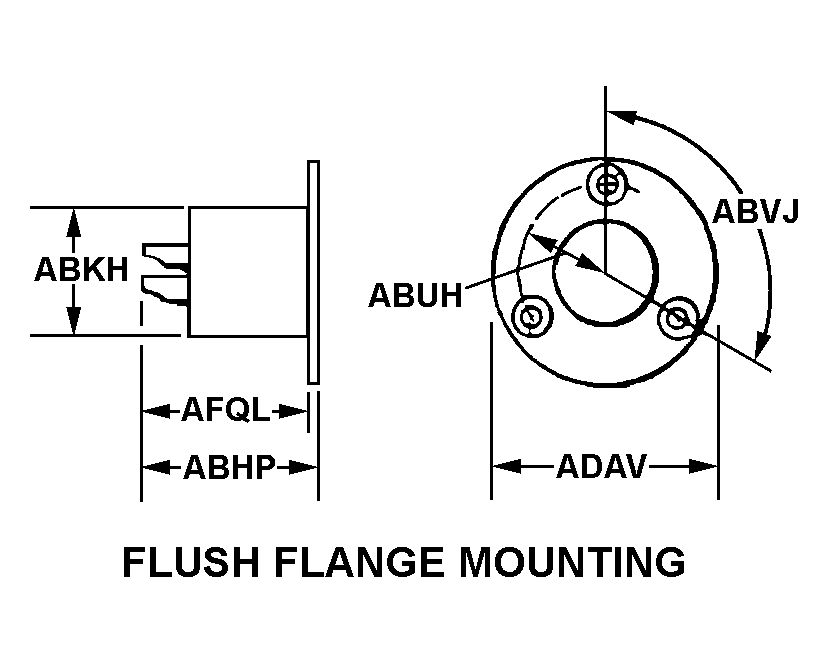

FLUSH FLANGE MOUNTING
Cross Reference | NSN 5935-00-104-0813
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M2726/7-001 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MILR2726-7 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
Technical Data | NSN 5935-00-104-0813
| Characteristic | Specifications |
|---|---|
| BODY STYLE | FLUSH FLANGE MOUNTING |
| OVERALL LENGTH | 2.000 INCHES NOMINAL |
| MOUNTING HOLE CIRCLE RADIUS | 1.562 INCHES NOMINAL |
| OVERALL DIAMETER | 3.000 INCHES MAXIMUM |
| DISTANCE FROM MOUNTING SHOULDER TO REAR FACE | 1.938 INCHES NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.190 INCHES NOMINAL |
| SHELL TYPE | SOLID |
| POLARIZATION METHOD | CONTACT |
| MATING END QUANTITY | 1 |
| ENVIRONMENTAL PROTECTION | MOISTURE RESISTANT |
| TEST DATA DOCUMENT | 81349-MIL-R-2726 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.). |
| SPECIFICATION/STANDARD DATA | 81349-MIL-R-2726 TO 7 GOVERNMENT SPECIFICATION |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND WEIGHT | 0.002 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
