NSN 5935-00-104-3546
Part Details | ELECTRICAL CONNECTOR JACKSCREW
5935-00-104-3546 A locking device specifically designed to secure engaged electrical connectors. Its mating end is either internally or externally threaded. It is designed to be installed in an ADAPTER (2), CONNECTOR; CONNECTOR BODY, PLUG, ELECTRICAL; CONNECTOR BODY, RECEPTACLE, ELECTRICAL; CONNECTOR, PLUG, ELECTRICAL; CONNECTOR, RECEPTACLE, ELECTRICAL; COVER, ELECTRICAL CONNECTOR; DUMMY CONNECTOR, PLUG; DUMMY CONNECTOR, RECEPTACLE; INSERT, ELECTRICAL CONNECTOR; SHELL, ELECTRICAL CONNECTOR; or a SHIELD, ELECTRICAL CONNECTOR. It may be used for polarization. It may be equipped with a knob, slotted head, knurled head, or the like.
Alternate Parts: 12027031, 1202703-1, M2874817MS181941, M28748/17MS18194-1, MILDTL2874817, MIL-DTL-28748/17, MILDTL28748, MIL-DTL-28748, MILC28748, MIL-C-28748, MS181941, MS18194-1, 352250009464, 5935-00-104-3546, 00-104-3546, 5935001043546, 001043546
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 17, 1968 | 00-104-3546 | 36340 ( JACKSCREW, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

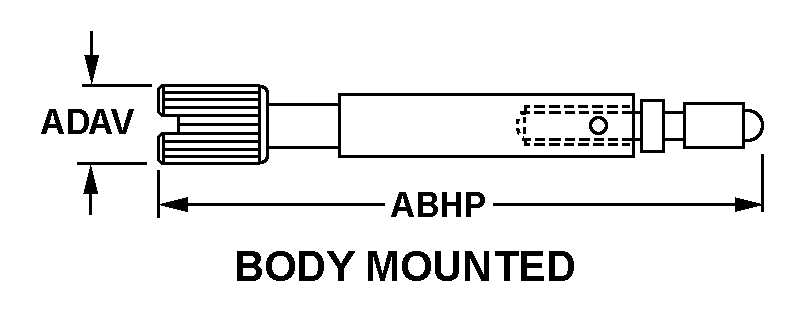

BODY MOUNTED
Cross Reference | NSN 5935-00-104-3546
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1202703-1 | 56232 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
| M28748/17MS18194-1 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MIL-DTL-28748/17 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MIL-DTL-28748 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MIL-C-28748 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MS18194-1 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
| 352250009464 | H0203 | THALES NEDERLANDDBA THALES LAND & JOINT SYSTEMS |
Technical Data | NSN 5935-00-104-3546
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | BODY MOUNTED |
| OVERALL LENGTH | 2.467 INCHES MAXIMUM |
| OVERALL DIAMETER | 0.375 INCHES NOMINAL |
| MATERIAL | STEEL CORROSION RESISTING |
| SURFACE TREATMENT | PASSIVATE |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED COUPLING |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
| SPECIFICATION/STANDARD DATA | 96906-MS18194-1 GOVERNMENT STANDARD |
