NSN 5935-00-104-5742
Part Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-104-5742 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: 01136A, 3577227020, 357-7227-020, 3577227020, 357-7227-020, 5935-00-104-5742, 00-104-5742, 5935001045742, 001045742
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 01, 1968 | 00-104-5742 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

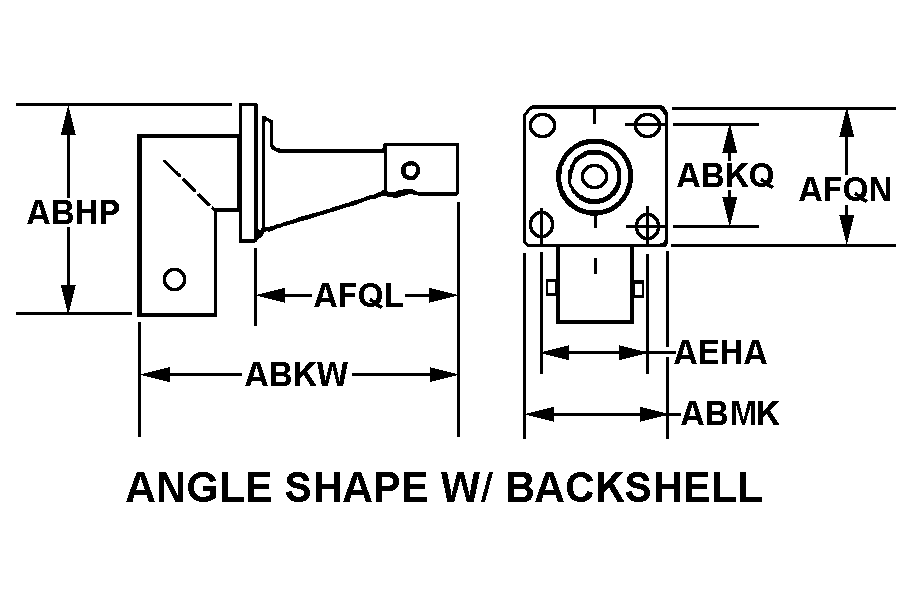

ANGLE SHAPE W/BACKSHELL
Cross Reference | NSN 5935-00-104-5742
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 01136A | 94375 | AUTOMATIC CONNECTOR |
| 357-7227-020 | 13499 | ROCKWELL COLLINS, INC.DBA GOVERNMENT SYSTEMS |
| 357-7227-020 | 95105 | ROCKWELL COLLINS, INC.DIV GOVERNMENT SYSTEMS - DALLAS |
Technical Data | NSN 5935-00-104-5742
| Characteristic | Specifications |
|---|---|
| BODY STYLE | ANGLE SHAPE W/BACKSHELL |
| OVERALL LENGTH | 1.562 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 0.718 INCHES NOMINAL |
| OVERALL HEIGHT | 1.937 INCHES NOMINAL |
| OVERALL WIDTH | 1.000 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 0.718 INCHES NOMINAL |
| DISTANCE FROM MOUNTING SHOULDER TO REAR FACE | 1.062 INCHES NOMINAL |
| FLANGE LENGTH | 1.000 INCHES NOMINAL |
| BUSHING ACCOMMODATION HOLE SHAPE | ROUND |
| CONNECTOR LOCKING METHOD | BAYONET LATCH |
| THREADED DEVICE TYPE | MOUNTING HOLE |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.112 INCHES |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| CONNECTOR CABLE STRAIN RELIEF METHOD | BASKET WEAVE GRIP |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | COPPER ALLOY |
| SHELL SURFACE TREATMENT | SILVER |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-S-365,TYPE 3,GRADE A FED SPEC SINGLE TREATMENT RESPONSE |
| MATING END QUANTITY | 1 |
| PRECIOUS MATERIAL | SILVER |
| PRECIOUS MATERIAL AND WEIGHT | 0.105 SILVER GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES SILVER |
