NSN 5935-00-104-7220
Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-104-7220 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 400814, 5935-00-104-7220, 00-104-7220, 5935001047220, 001047220
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 01, 1968 | 00-104-7220 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES

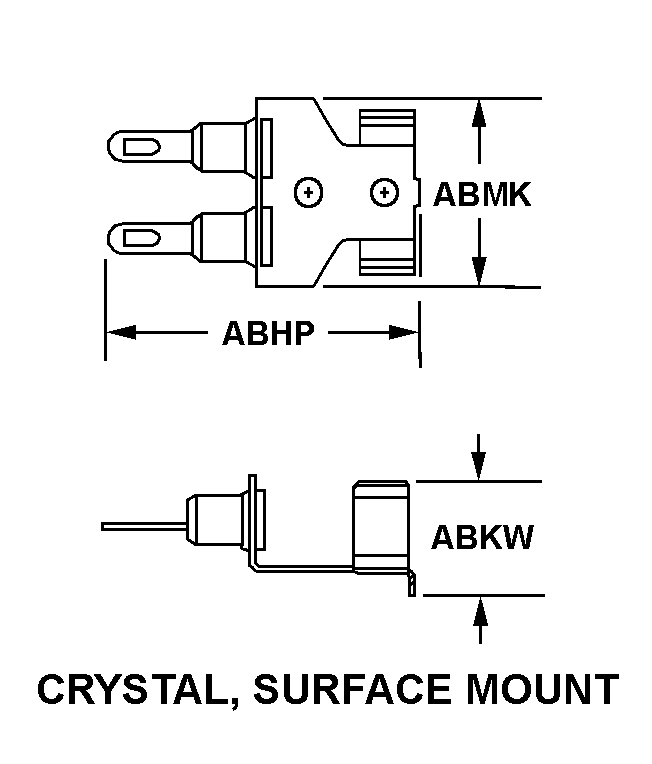

CRYSTAL, SURFACE MOUNT
TWO MOUNTING HOLES/SLOTS, IN-LINE
IN LINE
Cross Reference | NSN 5935-00-104-7220
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 400814 | 04660 | AIL SYSTEMS INCSUB OF EATON CORP |
Technical Data | NSN 5935-00-104-7220
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | IN LINE |
| ACCOMMODATED CONTACT QUANTITY | 2 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 5.0 |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | U0000 ANY ACCEPTABLE |
| BODY STYLE | CRYSTAL, SURFACE MOUNT |
| OVERALL LENGTH | 1.250 INCHES NOMINAL |
| OVERALL HEIGHT | 0.438 INCHES NOMINAL |
| OVERALL WIDTH | 0.875 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 2 PIN |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | BODY THROUGH HOLE |
| MOUNTING HOLE STYLE | TWO MOUNTING HOLES/SLOTS, IN-LINE |
| MOUNTING HOLE DIAMETER | 0.093 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 0.200 INCHES NOMINAL |
| TEST DATA DOCUMENT | 04660-400814 DRAWING (THIS IS THE BASIC GOVERNING DRAWING, SUCH AS A CONTRACTOR DRAWING, ORIGINAL EQUIPMENT MANUFACTURER DRAWING, ETC.; EXCLUDES ANY SPECIFICATION, STANDARD OR OTHER DOCUMENT THAT MAY BE REFERENCED IN A BASIC GOVERNING DRAWING) |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY NAVORD OD41152 |
