NSN 5935-00-104-9992
Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-104-9992 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 400066, 400066, 400066, 5935-00-104-9992, 00-104-9992, 5935001049992, 001049992
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 24, 1968 | 00-104-9992 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
HIGH VOLTAGE

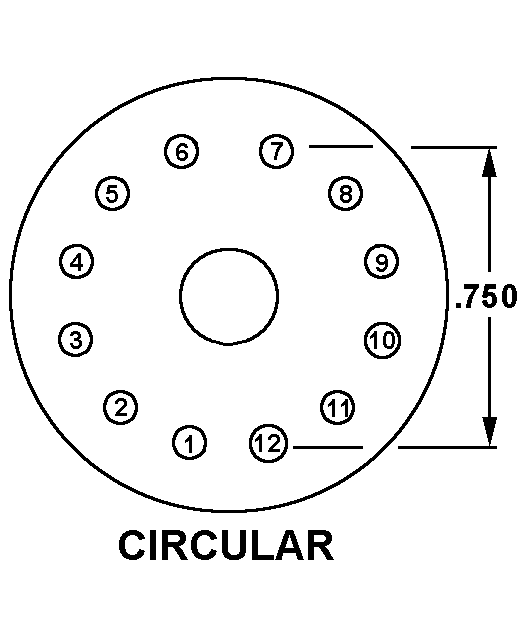

CIRCULAR
Cross Reference | NSN 5935-00-104-9992
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 400066 | 20284 | AIMTRON SYSTEMS LLCDBA TARGET |
| 400066 | 12909 | CARDION INC |
| 400066 | 56289 | SPRAGUE ELECTRIC COWORLD HQS |
Technical Data | NSN 5935-00-104-9992
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | CIRCULAR |
| ACCOMMODATED CONTACT QUANTITY | 12 |
| CONTACT MATERIAL | BRASS |
| CONTACT SURFACE TREATMENT | CADMIUM |
| BODY STYLE | HIGH VOLTAGE |
| OVERALL HEIGHT | 0.669 INCHES NOMINAL |
| BODY DIAMETER | 1.656 INCHES NOMINAL |
| OVERALL DIAMETER | 1.938 INCHES NOMINAL |
| PROJECTION LENGTH ABOVE MOUNTING SURFACE | 0.200 INCHES NOMINAL |
| BODY MATERIAL | Y0000 ANY ACCEPTABLE |
| TERMINAL TYPE AND QUANTITY | 12 ANY ACCEPTABLE |
| MOUNTING TYPE FOR WHICH DESIGNED | TUBE |
